Double Curtain Jamb Detail

Materials

Elements

About this detail

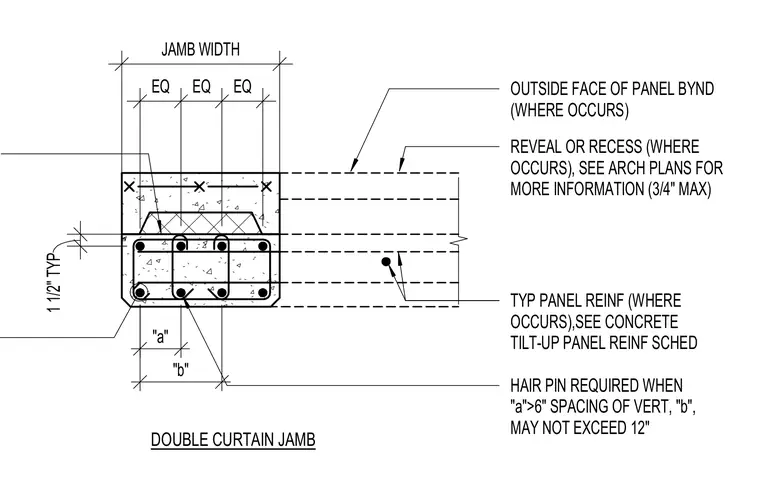

A double curtain jamb in a concrete tilt-up wall assembly features a standard width of one and one-half inches with symmetrical equal spacing across the cross-section. Typical panel reinforcement is provided as specified in the concrete tilt-up panel reinforcement schedule, with reveals or recesses limited to a maximum of three-quarters of an inch where applicable. A hairpin reinforcement bar is required when dimension 'a' exceeds six inches, and the spacing of vertical reinforcement 'b' may not exceed twelve inches.
