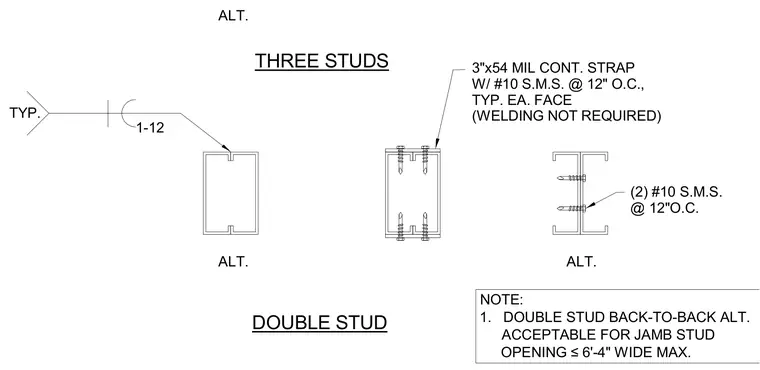

Cold-formed steel jamb stud openings utilize multi-stud configurations with alternative detailing based on opening widths up to six feet four inches maximum. The three-stud assembly connects studs using two number ten sheet metal screws at twelve inches on center on each face, with welding not required. A three-inch by fifty-four mil continuous strap fastens across the assembly with number ten sheet metal screws at twelve inches on center on each face. A double stud back-to-back alternative is acceptable for jamb stud openings up to six feet four inches wide maximum.
NOTE: 1. DOUBLE STUD BACK-TO-BACK ALT. ACCEPTABLE FOR JAMB STUD OPENING ≤ 6'-4" WIDE MAX. DOUBLE STUD ALT. 1-12 TYP. THREE STUDS ALT. (2) #10 S.M.S. @ 12"O.C. ALT. 3"x54 MIL CONT. STRAP W/ #10 S.M.S. @ 12" O.C., TYP. EA. FACE (WELDING NOT REQUIRED)
