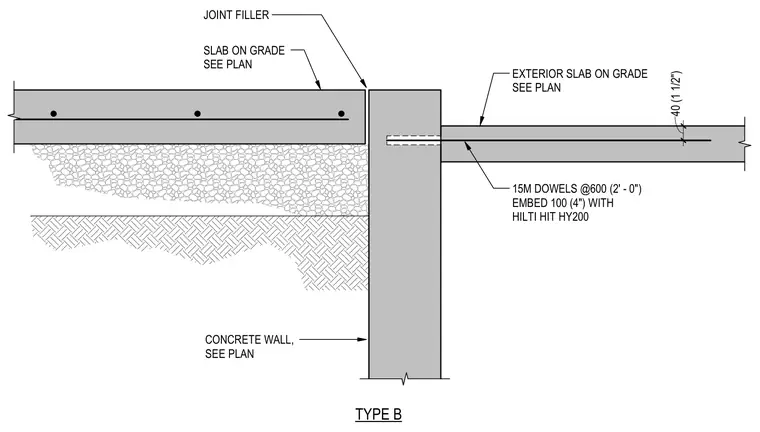

An exterior slab on grade is tied to a concrete wall using 15M dowels spaced at 600 millimeters, or two feet, embedded 100 millimeters, or 4 inches, into the wall with Hilti HIT-HY200 adhesive. Joint filler is installed in the gap between the exterior slab and the adjacent interior slab on grade. The exterior slab has a thickness of 40 millimeters, or 1 1/2 inches, above the dowel alignment. The concrete wall thickness and slab dimensions are sized per plan.
TYPE B EXTERIOR SLAB ON GRADE SEE PLAN 40 (1 1/2") SLAB ON GRADE SEE PLAN CONCRETE WALL, SEE PLAN JOINT FILLER 15M DOWELS @600 (2' - 0") EMBED 100 (4") WITH HILTI HIT HY200
