Structural · S-NF7BV

Pipe Penetration at Concrete Footing

Materials

Elements

About this detail

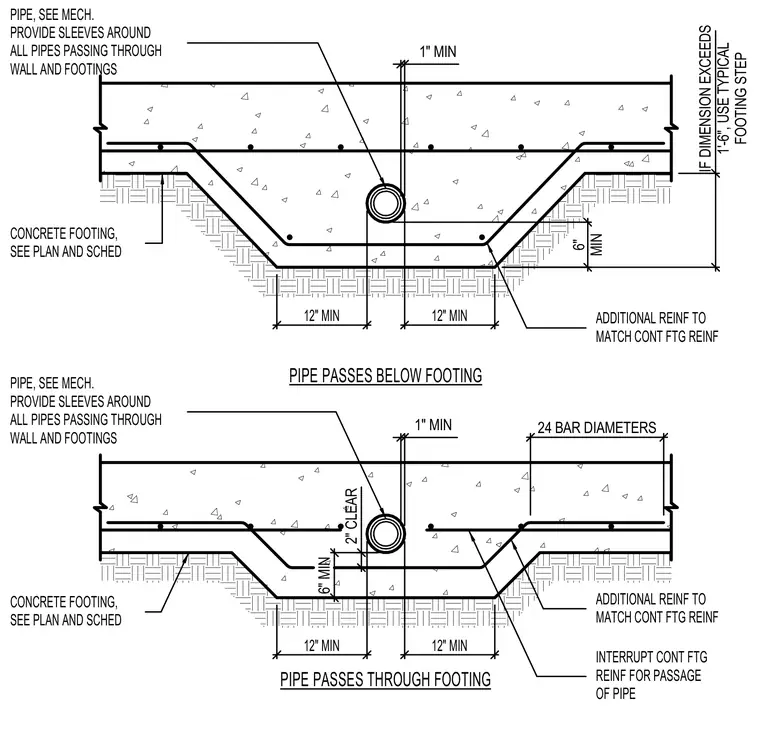

Pipes penetrating concrete footings are sleeved and detailed for both passing through and passing below the foundation elements. Continuous footing reinforcement is interrupted for pipe passages where passing through, with additional reinforcing bars matching the continuous footing reinforcement provided around the opening. Clearances and minimum dimensions govern the placement of pipes relative to the footing depth and subgrade. Sleeves are provided around all pipes passing through walls and footings per mechanical drawings.
