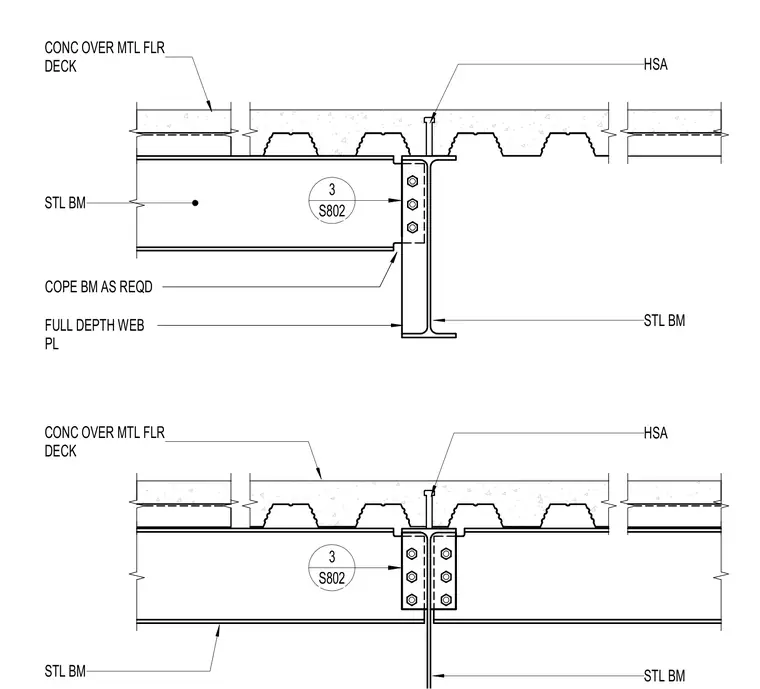

A steel beam frames into the web of a supporting steel beam using a full depth web plate with bolted connections. The supported steel beam is coped as required to clear the top flange of the supporting member. A concrete slab over metal floor deck bears across the top flanges, with headed stud anchors tying the deck assembly to the structural steel framework.
STL BM STL BM STL BM STL BM HSA HSA CONC OVER MTL FLR DECK CONC OVER MTL FLR DECK COPE BM AS REQD FULL DEPTH WEB PL 3 S802 3 S802
