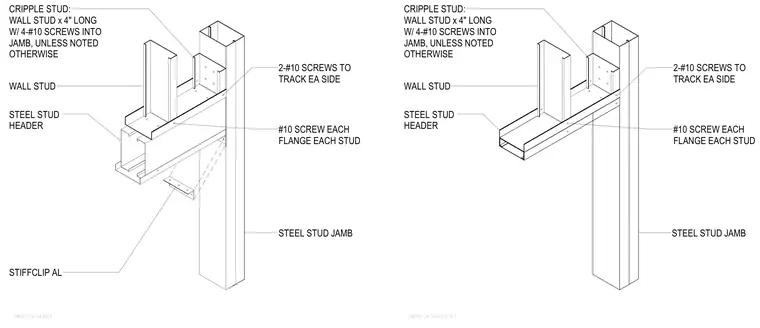

Cold-formed steel headers frame into vertical steel stud jambs using structural framing clips and self-drilling screws. Cripple studs bear on top of the header assembly and secure to the track with multiple screws on each side. The header flange connects to each stud using number ten screws on each flange and stud. A stiffener clip attaches the header web to the jamb stud in the reinforced configuration.
STIFFCLIP AL CRIPPLE STUD: WALL STUD x 4" LONG W/ 4-#10 SCREWS INTO JAMB, UNLESS NOTED OTHERWISE STEEL STUD JAMB 2-#10 SCREWS TO TRACK EA SIDE STEEL STUD HEADER SW002-D4 HEADER #10 SCREW EACH FLANGE EACH STUD WALL STUD STEEL STUD JAMB STEEL STUD HEADER WALL STUD SW002-D4 HEADER ALT CRIPPLE STUD: WALL STUD x 4" LONG W/ 4-#10 SCREWS INTO JAMB, UNLESS NOTED OTHERWISE 2-#10 SCREWS TO TRACK EA SIDE #10 SCREW EACH FLANGE EACH STUD
