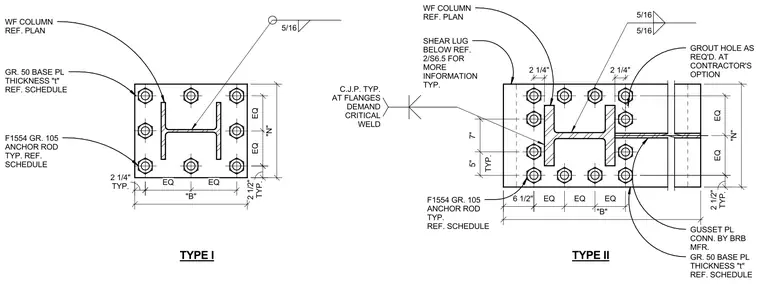

A wide flange column connects to a Grade 50 steel base plate anchored by ASTM F1554 Grade 105 anchor rods sized per schedule. Type I details a standard column base plate with symmetrical anchor bolt spacing and fillet welds at the column flanges. Type II incorporates a gusset plate connection provided by the buckling-restrained brace manufacturer, a shear lug located below, and complete joint penetration demand critical welds at the flanges. Grout holes are provided as required at the contractor's option.
WF COLUMN REF. PLAN GR. 50 BASE PL THICKNESS "t" REF. SCHEDULE F1554 GR. 105 ANCHOR ROD TYP. REF. SCHEDULE TYPE I SHEAR LUG BELOW REF. 2/S6.5 FOR MORE INFORMATION TYP. GR. 50 BASE PL THICKNESS "t" REF. SCHEDULE F1554 GR. 105 ANCHOR ROD TYP. REF. SCHEDULE WF COLUMN REF. PLAN GUSSET PL CONN. BY BRB MFR. GROUT HOLE AS REQ'D. AT CONTRACTOR'S OPTION TYPE II 2 1/4" TYP. EQ EQ "B" 2 1/2" TYP. EQ EQ "N" 5/16 C.J.P. TYP. AT FLANGES DEMAND CRITICAL WELD 5/16 5/16 2 1/4" 2 1/4" TYP. 5" 7" 6 1/2" EQ EQ EQ "B" "N" EQ EQ TYP. 2 1/2"
