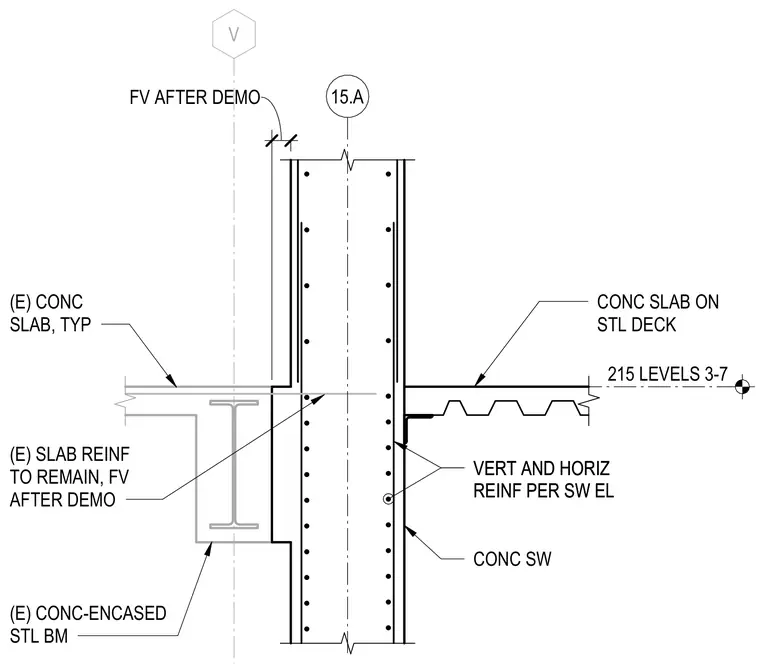

The intersection of a concrete shear wall at grid 15A frames into floor construction across levels 3 through 7. Vertical and horizontal reinforcement in the concrete shear wall is sized per the shear wall elevation. A concrete slab on steel deck bears against one side of the shear wall. An existing concrete-encased steel beam supports an existing concrete slab with slab reinforcement to remain after demolition on the opposite side.
V 15.A 215 LEVELS 3-7 CONC SLAB ON STL DECK CONC SW VERT AND HORIZ REINF PER SW EL (E) CONC-ENCASED STL BM (E) CONC SLAB, TYP VERT AND HORIZ REINF PER SW EL FV AFTER DEMO (E) SLAB REINF TO REMAIN, FV AFTER DEMO
