Structural · S-NEBM5

Typical Concrete Tilt-Up Panel Elevation With

Materials

Elements

Arches Connections / Plates Reinforcing Roof / Floor Openings

About this detail

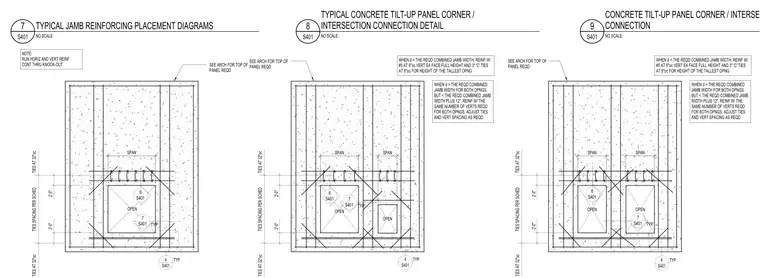

Concrete tilt-up wall panels feature reinforced openings with specific jamb reinforcing placement criteria based on opening geometry and spacing. Horizontal and vertical reinforcing runs continuously through knock-outs, with ties spaced per schedule or at thirty-two inches on center. When the clear distance is less than the required combined jamb width, the assembly is reinforced with number five vertical bars at six inches on center on each face full height, along with three-inch 'C' ties at eight inches on center for the height of the tallest opening. When the clear distance exceeds the required combined jamb width but is less than the combined width plus twelve inches, the same number of verticals is provided with adjusted tie and vertical spacing. Additional notes require checking architectural drawings for the required top of panel dimensions.
