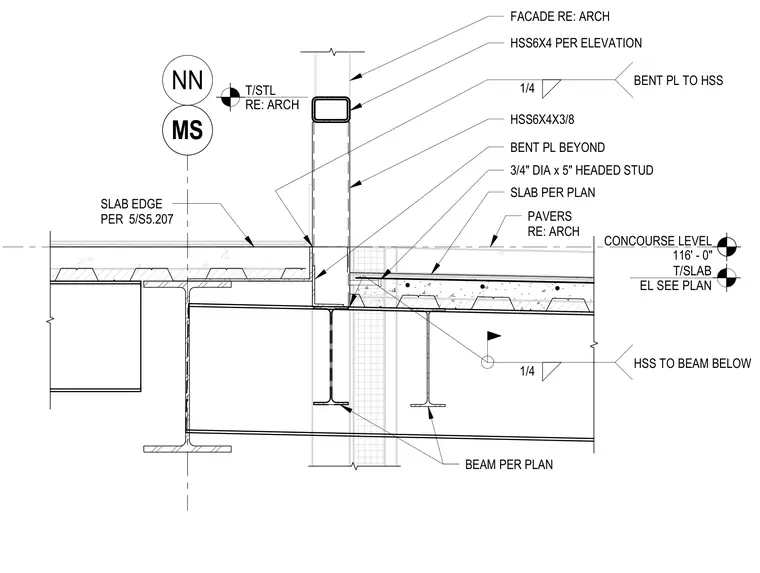

An HSS6x4x3/8 hollow structural section column bears on a structural steel beam below, connected by a quarter-inch fillet weld. A bent plate attaches the HSS column to the assembly, with three-quarter-inch diameter by five-inch headed shear studs embedded in the concrete slab. Pavers are positioned at the concourse level adjacent to the facade and slab edge per plan.
CONCOURSE LEVEL 116' - 0" MS SLAB EDGE PER 5/S5.207 BEAM PER PLAN PAVERS RE: ARCH 3/4" DIA x 5" HEADED STUD T/SLAB EL SEE PLAN NN 1/4 BENT PL TO HSS 1/4 HSS TO BEAM BELOW BENT PL BEYOND HSS6X4 PER ELEVATION FACADE RE: ARCH SLAB PER PLAN HSS6X4X3/8 T/STL RE: ARCH
