Structural · S-NE559

Typical Braced Frame Column and Anchorage

Materials

Concrete

Elements

Columns Foundations / Footings Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Rebar Splice / Development

About this detail

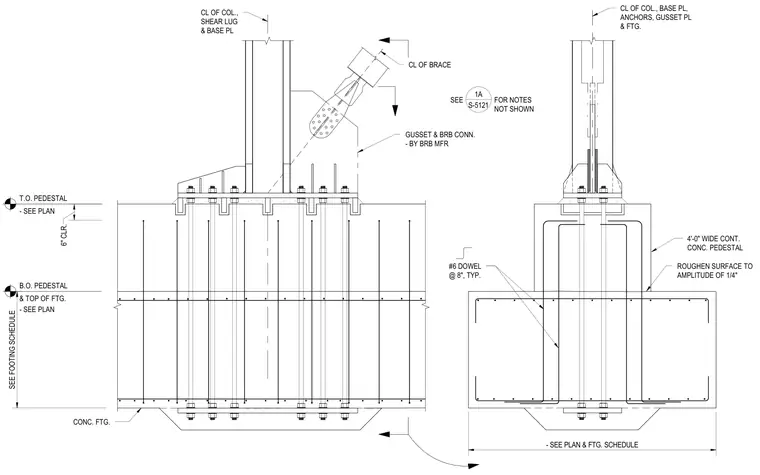

A steel braced frame column base rests on a four-foot-wide continuous concrete pedestal and concrete footing. The assembly includes a base plate, anchor bolts, shear lug, and a gusset plate connecting to a buckling-restrained brace provided by the manufacturer. The concrete pedestal features #6 dowels spaced at eight inches typically, with construction surfaces roughened to an amplitude of one-quarter inch. Vertical alignment is established at the centerlines of the column, base plate, anchors, gusset plate, and footing. Additional connection notes and footing schedules are referenced per plan.
