Reinforcing Hook at Face of Concrete Column or Wall

Materials

Concrete

Elements

Columns Walls Reinforcing

Connections

Rebar Splice / Development

About this detail

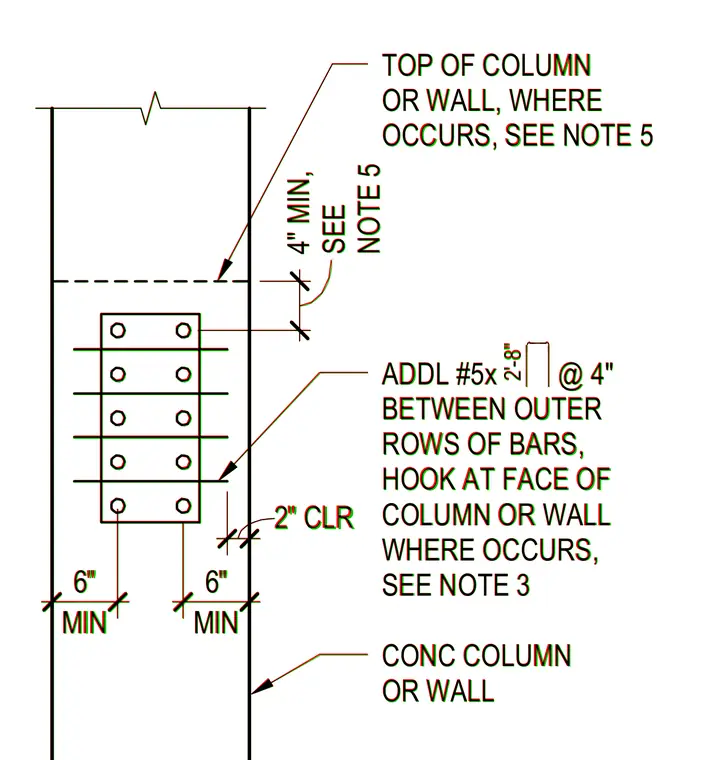

Reinforcing hook placement and additional bar configurations at the face of a concrete column or wall. Additional number five bars spanning two feet eight inches are spaced at four inches on center between outer rows of bars, maintaining a two-inch minimum clearance. Dimensions indicate a six-inch minimum edge distance and a four-inch minimum spacing from the top of the column or wall where applicable.
