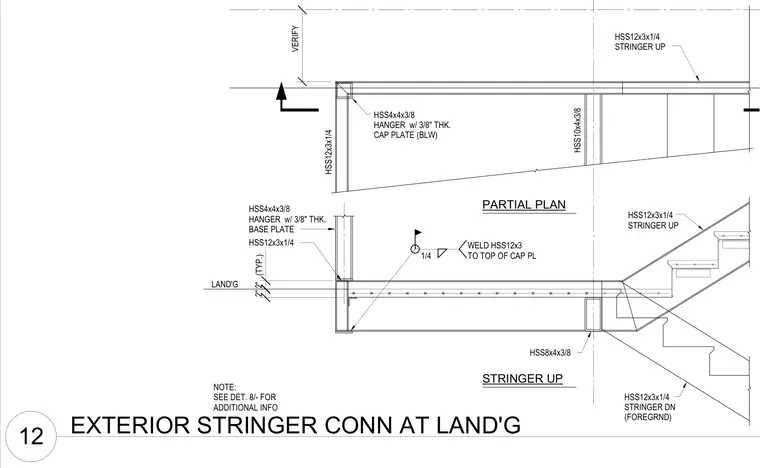

An exterior stair landing connection frames upward- and downward-extending stair stringers into hollow structural section members including an HSS12x3x1/4 stringer up, an HSS12x3x1/4 stringer down in the foreground, and an HSS8x4x3/8 member. An HSS4x4x3/8 vertical hanger connects via a three-eighths-inch-thick base plate and a three-eighths-inch-thick cap plate below. A quarter-inch fillet weld secures the HSS12x3 member to the top of the cap plate. Additional framing includes an HSS10x4x3/8 member.
NOTE: SEE DET. 8/- FOR ADDITIONAL INFO PARTIAL PLAN STRINGER UP LAND'G HSS4x4x3/8 HANGER w/ 3/8" THK. BASE PLATE HSS12x3x1/4 STRINGER UP HSS12x3x1/4 HSS10x4x3/8 HSS12x3x1/4 (TYP.) WELD HSS12x3 TO TOP OF CAP PL 1/4 HSS4x4x3/8 HANGER w/ 3/8" THK. CAP PLATE (BLW) HSS8x4x3/8 HSS12x3x1/4 STRINGER UP HSS12x3x1/4 STRINGER DN (FOREGRND) VERIFY 2" 2" 12 EXTERIOR STRINGER CONN AT LAND'G
