Vertical reinforcing bars and boundary reinforcing extend from the foundation footing with standard development lengths and hooked dowels matching the vertical reinforcement. Mechanical couplers splice the vertical bars within the wall zone. Boundary ties extend into the footing typical, with specific edge clearances and dimensions detailed per structural requirements.

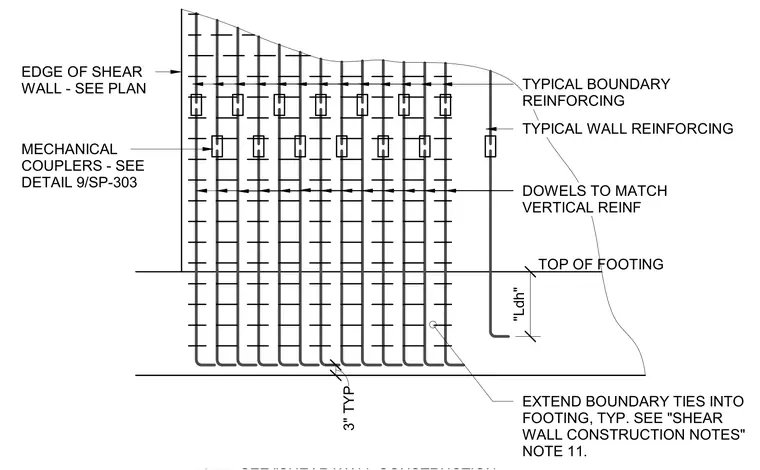

MECHANICAL COUPLERS - SEE DETAIL 9/SP-303 "Ldh" 3" TYP EDGE OF SHEAR WALL - SEE PLAN TOP OF FOOTING DOWELS TO MATCH VERTICAL REINF TYPICAL WALL REINFORCING TYPICAL BOUNDARY REINFORCING EXTEND BOUNDARY TIES INTO FOOTING, TYP. SEE "SHEAR WALL CONSTRUCTION NOTES" NOTE 11.
