Structural · S-NDPNQ

Single Layer Lintel

Materials

Concrete

Elements

Beams Walls Foundations / Footings Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

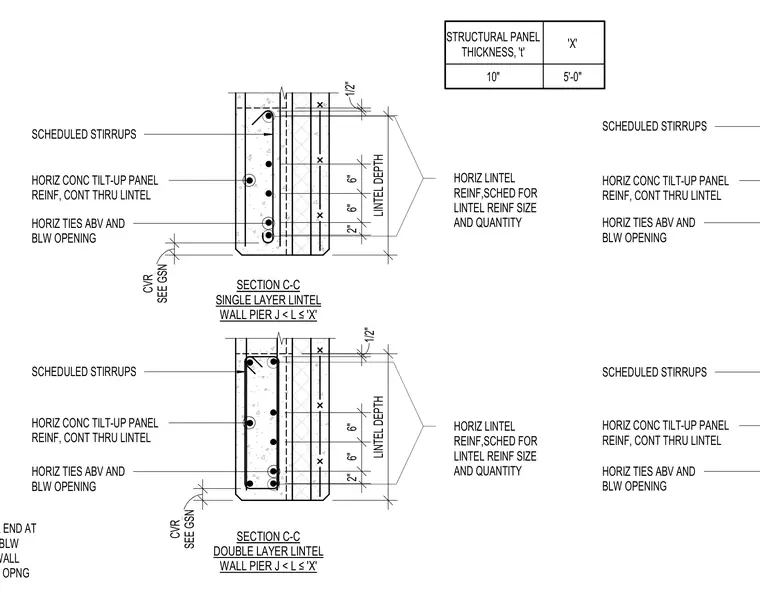

Concrete tilt-up panel lintel reinforcement configurations for single and double layer details at wall openings where J is less than L and less than or equal to X. The assembly incorporates scheduled stirrups, continuous horizontal concrete tilt-up panel reinforcement running through the lintel, and horizontal ties positioned above and below the opening. Additional three number three bars with 180-degree hooks at each end are specified at 6 inches on center when the opening length falls within the designated range, extending from the wall pier edge across the entire length of the opening. Cover dimensions and lintel depths are detailed with specific vertical clearances of 2 inches, 6 inches, and 1/2 inch. Horizontal lintel reinforcement size and quantity are determined per the scheduled requirements.
