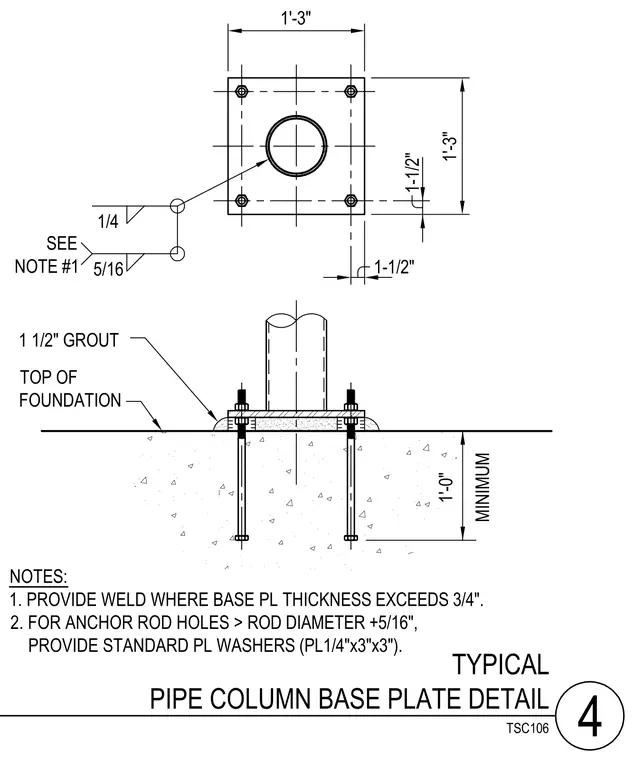

A structural steel pipe column is welded to a square base plate measuring one foot three inches on each side, secured by four anchor rods embedded at least one foot into the concrete foundation. A one-and-a-half-inch grout layer levels the base plate above the top of the foundation. Fillet welds connect the pipe column to the base plate, with a one-quarter-inch weld and a five-sixteenth-inch weld specified per note one when base plate thickness exceeds three-quarters of an inch. Standard plate washers measuring one-quarter inch by three inches by three inches are required for anchor rod holes greater than the rod diameter plus five-sixteenths of an inch.
TYPICAL PIPE COLUMN BASE PLATE DETAIL 4 1'-3" 1'-3" NOTES: 1. PROVIDE WELD WHERE BASE PL THICKNESS EXCEEDS 3/4". 2. FOR ANCHOR ROD HOLES > ROD DIAMETER +5/16", PROVIDE STANDARD PL WASHERS (PL1/4"x3"x3"). SEE NOTE #1 1 1/2" GROUT TOP OF FOUNDATION 1-1/2" 1-1/2" MINIMUM 1/4 5/16 1'-0" TSC106
