A typical column splice connection is located four feet above the finished floor. The upper and lower column sections feature square-cut ends joined by complete joint penetration demand-critical welds at both the flanges and web. An internal erection plate aids in alignment during field assembly. Weld access holes and transitions for unequal thicknesses are specified per AISC standards.

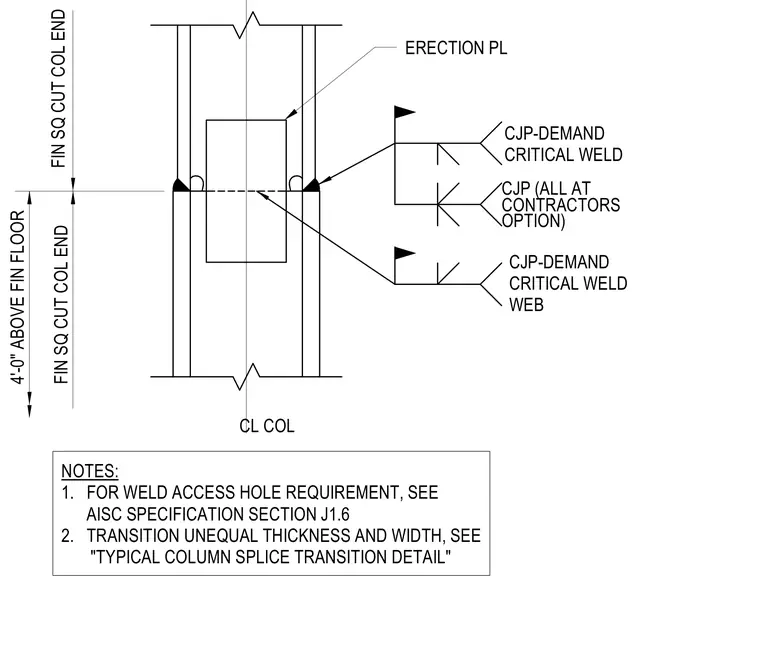

CJP (ALL AT CONTRACTORS OPTION) CJP-DEMAND CRITICAL WELD CJP-DEMAND CRITICAL WELD WEB 4'-0" ABOVE FIN FLOOR FIN SQ CUT COL END FIN SQ CUT COL END ERECTION PL CL COL NOTES: 1. FOR WELD ACCESS HOLE REQUIREMENT, SEE AISC SPECIFICATION SECTION J1.6 2. TRANSITION UNEQUAL THICKNESS AND WIDTH, SEE "TYPICAL COLUMN SPLICE TRANSITION DETAIL"
