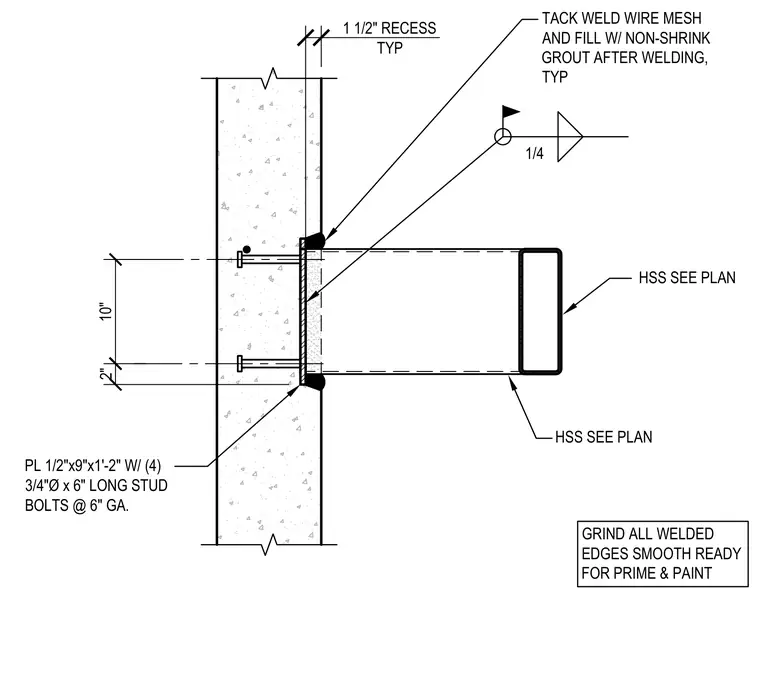

A hollow structural section member connects to a concrete wall through a half-inch by nine-inch by one-foot two-inch embed plate secured by four three-quarter-inch diameter by six-inch long stud bolts at a six-inch gauge. The structural steel member is fillet welded to the plate with a quarter-inch weld. Wire mesh is tack welded into the one-and-a-half-inch typical recess and filled with non-shrink grout after welding. All welded edges are ground smooth and prepared for prime and paint.
10" 1 1/2" RECESS TYP 1/4 TACK WELD WIRE MESH AND FILL W/ NON-SHRINK GROUT AFTER WELDING, TYP HSS SEE PLAN HSS SEE PLAN PL 1/2"x9"x1'-2" W/ (4) 3/4"Ø x 6" LONG STUD BOLTS @ 6" GA. GRIND ALL WELDED EDGES SMOOTH READY FOR PRIME & PAINT 2"
