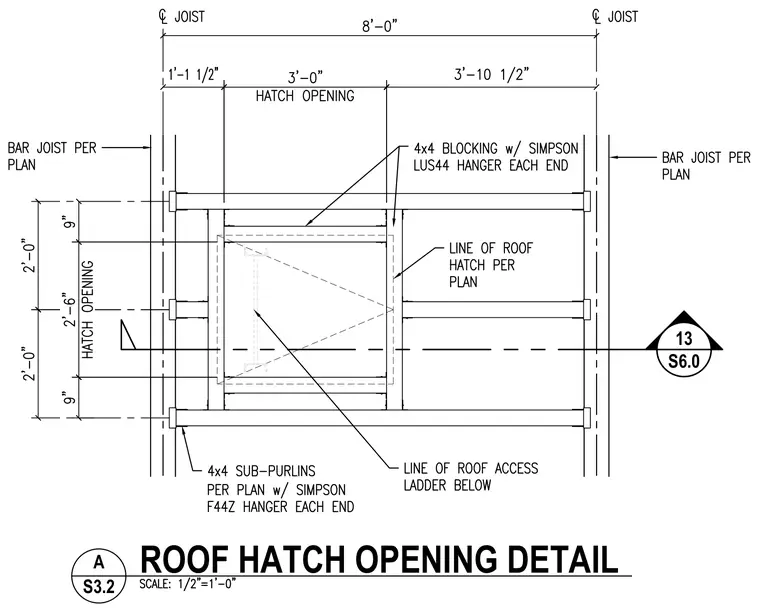

This structural framing detail shows the layout for a roof hatch opening between bar joists spaced 8 feet on center. The opening measures 3 feet by 2 feet 6 inches, framed with 4x4 sub-purlins and 4x4 blocking connected using Simpson hangers at each end. Bar joists and access ladders are positioned per plan.
