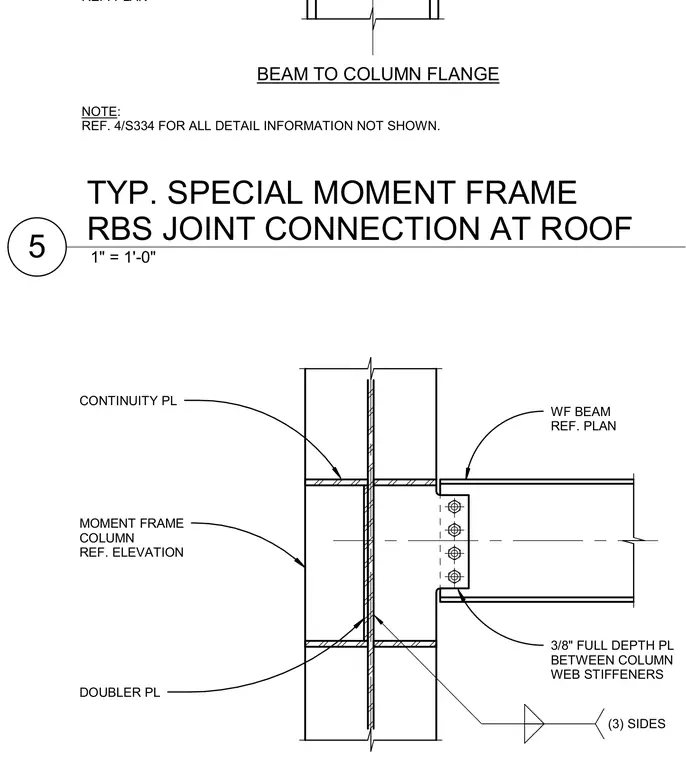

A special moment frame reduced beam section joint connection at the roof level frames into a wide-flange column flange. A wide-flange beam connects to the column with continuity plates aligned with the beam flanges. A three-sided doubler plate and a three-eighths-inch full depth plate between the column web stiffeners reinforce the column web panel zone.
REF. PLAN BEAM TO COLUMN FLANGE NOTE: REF. 4/S334 FOR ALL DETAIL INFORMATION NOT SHOWN. WF BEAM REF. PLAN MOMENT FRAME COLUMN REF. ELEVATION 3/8" FULL DEPTH PL BETWEEN COLUMN WEB STIFFENERS CONTINUITY PL DOUBLER PL (3) SIDES 1" = 1'-0" 5 TYP. SPECIAL MOMENT FRAME RBS JOINT CONNECTION AT ROOF
