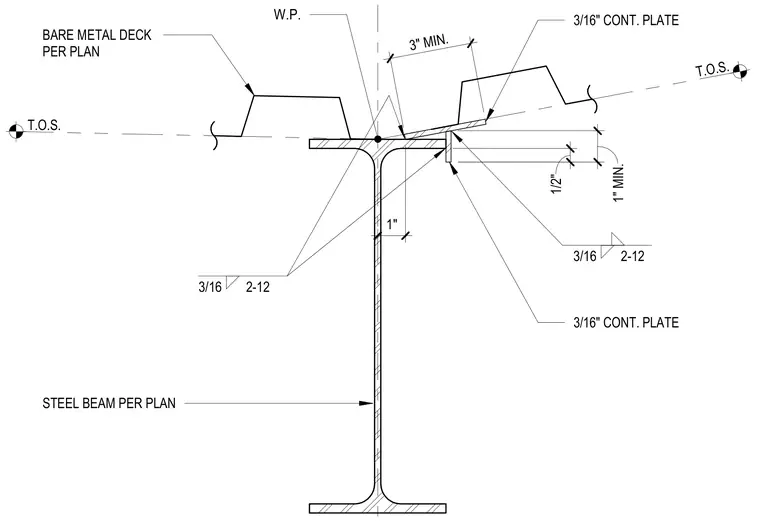

A bare metal deck transitions over a steel beam per plan with a 3/16 inch continuous plate. The continuous plate connects to the top flange of the steel beam with 3/16 inch welds spaced at 2-12 intervals. Dimensions indicate a 3 inch minimum extension and a 1 inch minimum offset from the working point, with top of steel elevations marked across the assembly.
1/2" 1" BARE METAL DECK PER PLAN T.O.S. 3" MIN. 1" MIN. T.O.S. W.P. 3/16 2-12 3/16 2-12 3/16" CONT. PLATE 3/16" CONT. PLATE STEEL BEAM PER PLAN
