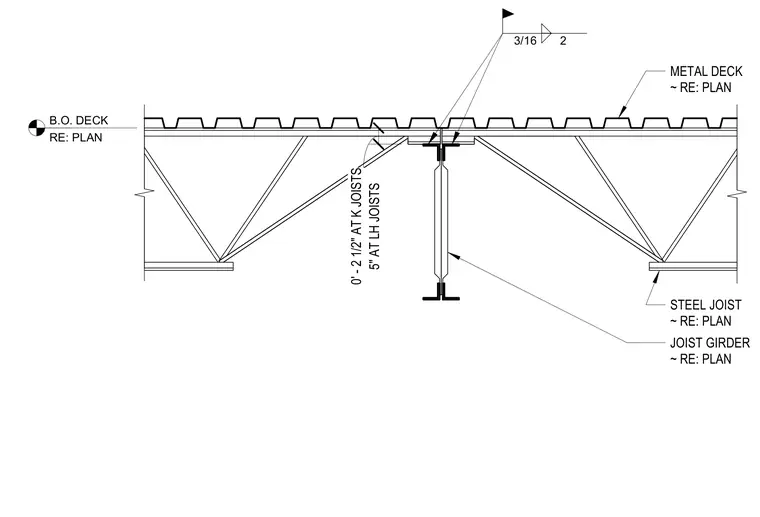

Open-web steel joists bear on the top chord of a supporting joist girder. A profiled metal deck spans across the top of the joist assembly. Clearances between adjacent joist ends measure two and a half inches for K-series joists and five inches for long-span joists. A three-sixteenth-inch fillet weld secures the connection components.
B.O. DECK RE: PLAN 5" AT LH JOISTS 0' - 2 1/2" AT K JOISTS JOIST GIRDER ~ RE: PLAN STEEL JOIST ~ RE: PLAN METAL DECK ~ RE: PLAN 3/16 2
