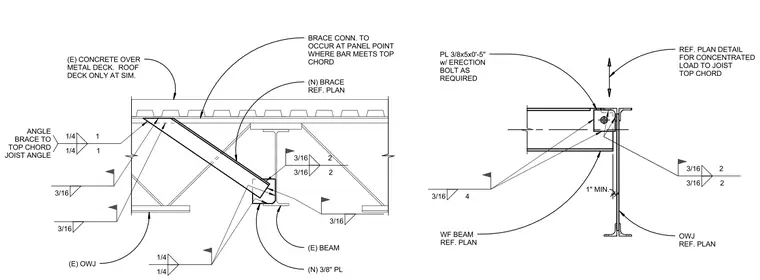

An angle brace connects to the top chord of an open web joist at the panel point where the bar meets the chord, welded with quarter-inch fillet welds. A new three-eighths-inch plate is welded to the existing wide flange beam with three-sixteenths-inch fillet welds. An existing concrete slab over metal deck spans above the joist assembly, with roof deck present only at similar conditions. A separate view details the wide flange beam connection to the open web joist utilizing a three-eighths by five-inch plate by zero-feet-five-inches long with an erection bolt as required and maintaining a one-inch minimum clearance.
REF. PLAN DETAIL FOR CONCENTRATED LOAD TO JOIST TOP CHORD OWJ REF. PLAN WF BEAM REF. PLAN PL 3/8x5x0'-5" w/ ERECTION BOLT AS REQUIRED 3/16 4 3/16 2 3/16 2 1" MIN. (E) CONCRETE OVER METAL DECK. ROOF DECK ONLY AT SIM. (N) BRACE REF. PLAN BRACE CONN. TO OCCUR AT PANEL POINT WHERE BAR MEETS TOP CHORD (E) BEAM (N) 3/8" PL (E) OWJ 1/4 1 1/4 1 ANGLE BRACE TO TOP CHORD JOIST ANGLE 3/16 3/16 1/4 1/4 3/16 3/16 2 3/16 2
