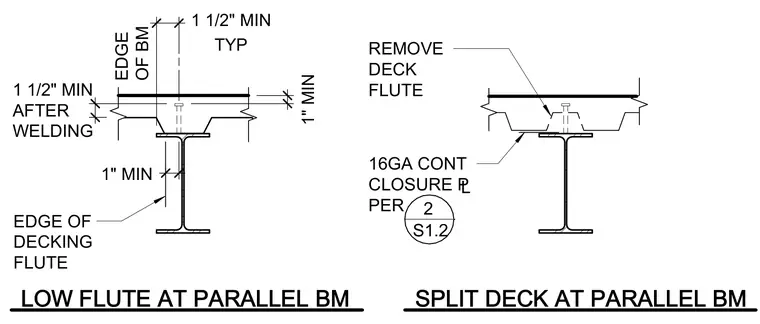

Metal decking terminates and splits over a parallel steel beam utilizing a continuous 16-gauge closure plate and specific edge clearance dimensions. The low flute condition requires removing the deck flute above the beam flange with minimum clearances maintained from the edge of the beam to the edge of the decking flute.
EDGE OF BM EDGE OF DECKING FLUTE TYP 1 1/2" MIN SPLIT DECK AT PARALLEL BM LOW FLUTE AT PARALLEL BM 1" MIN REMOVE DECK FLUTE 16GA CONT CLOSURE £ PER 1" MIN 2 S1.2 ___________ 1 1/2" MIN AFTER WELDING
