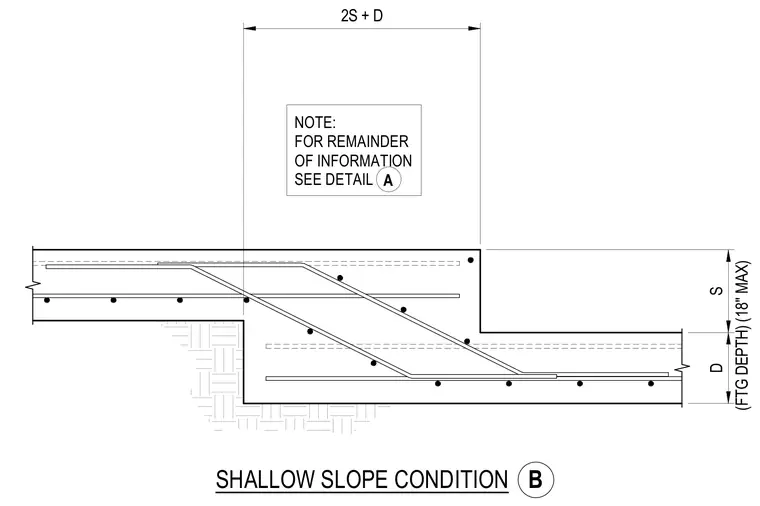

A stepped footing transition for a shallow slope condition with a maximum footing depth of eighteen inches. Continuous bottom and top reinforcing bars run horizontally through the stepped concrete section, tied together with diagonal and transverse reinforcement following the geometric transition formula of two S plus D. Additional information and connection requirements are referenced to detail A. The subgrade soil supports the stepped concrete footing profile.
SHALLOW SLOPE CONDITION NOTE: FOR REMAINDER OF INFORMATION SEE DETAIL 2S + D (FTG DEPTH) D (18" MAX) S B A
