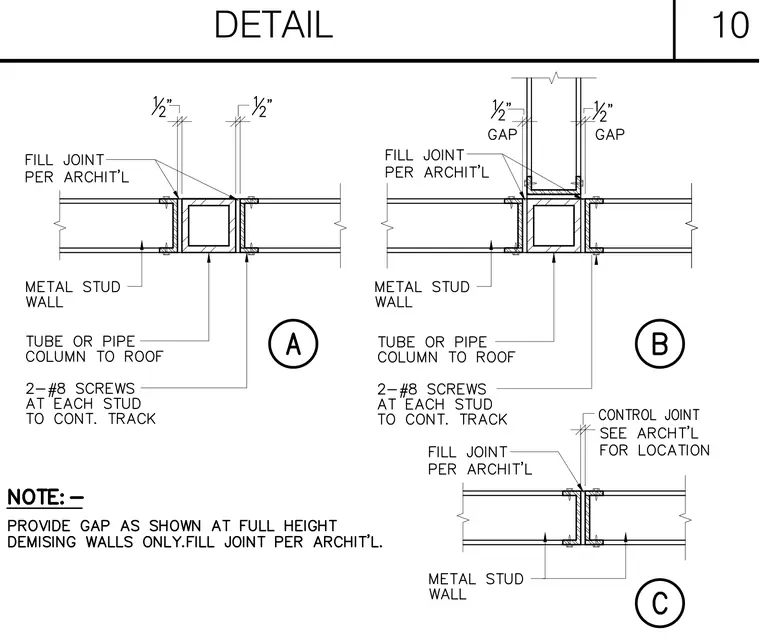

Metal stud walls connect to tubular or pipe columns and form control joints with specified gaps. Two number 8 screws secure each metal stud to the continuous track. Joints feature a half-inch gap filled per architectural specifications on demising walls. Control joints are placed per architectural plans.
