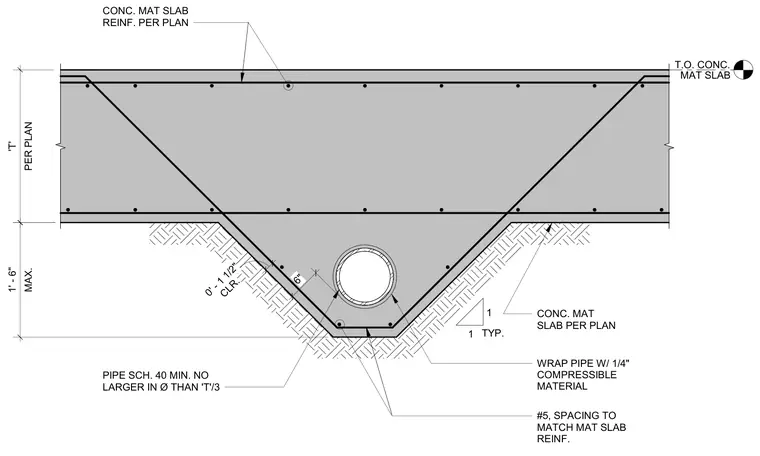

An embedded Schedule 40 pipe is cast within a concrete mat slab and wrapped in one-quarter-inch compressible material. The pipe diameter is limited to a maximum of one-third of the slab thickness 'T', which has a maximum depth of one foot six inches below the slab profile. The assembly is reinforced with number five bars spaced to match the mat slab reinforcement, maintaining a one-and-a-half-inch concrete clearance and a six-inch typical dimension from the pipe exterior.
1 1 WRAP PIPE W/ 1/4" COMPRESSIBLE MATERIAL CONC. MAT SLAB PER PLAN CONC. MAT SLAB REINF. PER PLAN PER PLAN 'T' MAX. 1' - 6" PIPE SCH. 40 MIN. NO LARGER IN Ø THAN 'T'/3 #5, SPACING TO MATCH MAT SLAB REINF. CLR. 0' - 1 1/2" 6" TYP. T.O. CONC. MAT SLAB
