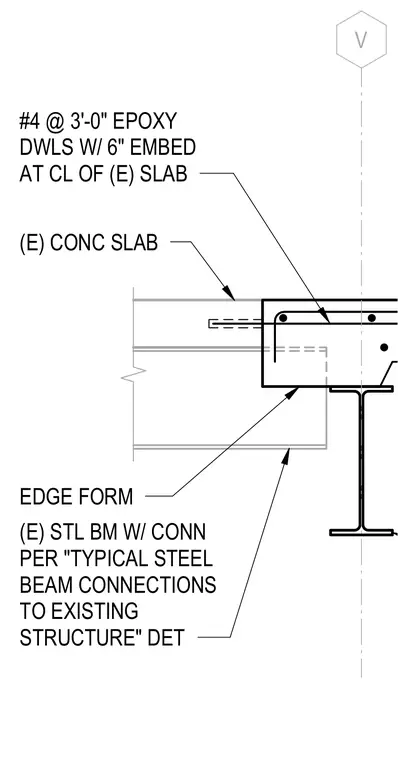

An existing steel beam connects to an existing concrete slab using a connection detailed per standard requirements. Number four epoxy dowels spaced at three feet on center provide six inches of embedment at the centerline of the existing slab edge form.
V (E) CONC SLAB #4 @ 3'-0" EPOXY DWLS W/ 6" EMBED AT CL OF (E) SLAB EDGE FORM (E) STL BM W/ CONN PER "TYPICAL STEEL BEAM CONNECTIONS TO EXISTING STRUCTURE" DET
