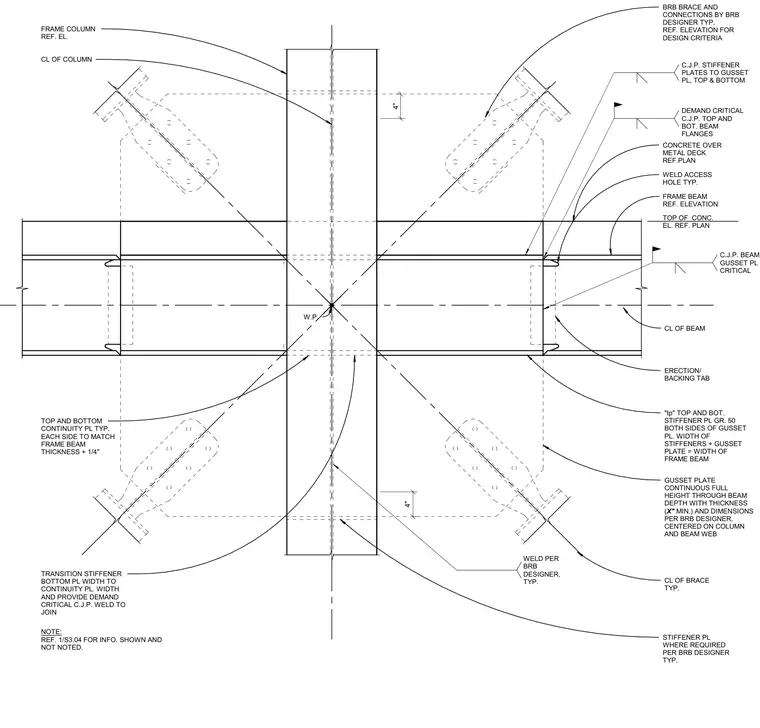

A welded buckling-restrained braced frame gusset plate connection occurs at Level 2 framing along the weak axis of a column. A continuous gusset plate passes through the beam depth, centered on the column and beam web, with dimensions and thickness specified by the BRB designer. Grade 50 top and bottom stiffener plates match the frame beam thickness plus one-quarter inch on both sides of the gusset plate. Complete joint penetration welds with erection backing tabs connect the beam flanges and web to the gusset, and demand-critical complete joint penetration welds join the stiffener plates. Additional transition stiffeners and BRB brace connections are provided per the design requirements.
CL OF COLUMN TOP OF CONC. EL. REF. PLAN FRAME BEAM REF. ELEVATION CONCRETE OVER METAL DECK REF.PLAN FRAME COLUMN REF. EL. CL OF BRACE TYP. W.P. TOP AND BOTTOM CONTINUITY PL TYP. EACH SIDE TO MATCH FRAME BEAM THICKNESS + 1/4" STIFFENER PL WHERE REQUIRED PER BRB DESIGNER TYP. NOTE: REF. 1/S3.04 FOR INFO. SHOWN AND NOT NOTED. "tp" TOP AND BOT. STIFFENER PL GR. 50 BOTH SIDES OF GUSSET PL. WIDTH OF STIFFENERS + GUSSET PLATE = WIDTH OF FRAME BEAM CL OF BEAM GUSSET PLATE CONTINUOUS FULL HEIGHT THROUGH BEAM DEPTH WITH THICKNESS ( X" MIN.) AND DIMENSIONS PER BRB DESIGNER, CENTERED ON COLUMN AND BEAM WEB BRB BRACE AND CONNECTIONS BY BRB DESIGNER TYP. REF. ELEVATION FOR DESIGN CRITERIA WELD PER BRB DESIGNER, TYP. ERECTION/ BACKING TAB DEMAND CRITICAL C.J.P. TOP AND BOT. BEAM FLANGES C.J.P. STIFFENER PLATES TO GUSSET PL, TOP & BOTTOM TRANSITION STIFFENER BOTTOM PL WIDTH TO CONTINUITY PL. WIDTH AND PROVIDE DEMAND CRITICAL C.J.P. WELD TO JOIN WELD ACCESS HOLE TYP. C.J.P. BEAM WEB TO GUSSET PL DEMAND CRITICAL 4" 4"
