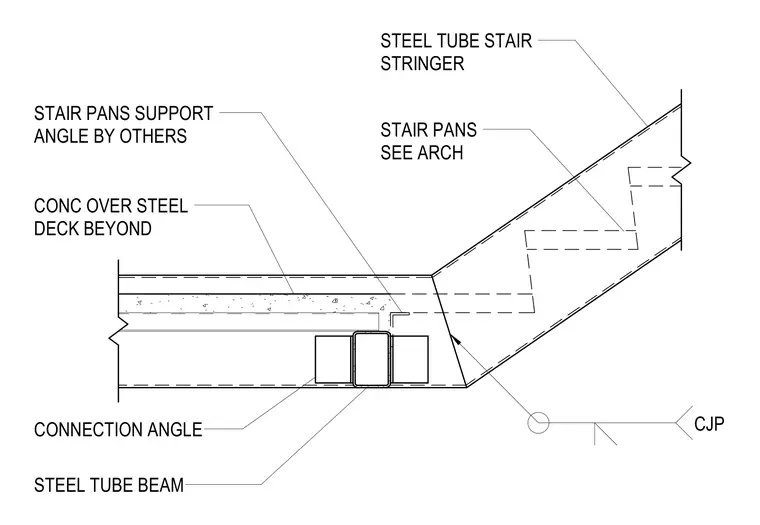

A steel tube stair stringer connects to a structural steel tube beam via a complete joint penetration weld. Stair pans are supported by an angle detailed per architectural drawings, while an additional stair pan support angle is provided by others. Concrete over a steel deck extends beyond the structural framing assembly.
CONC OVER STEEL DECK BEYOND STEEL TUBE STAIR STRINGER CJP STEEL TUBE BEAM STAIR PANS SEE ARCH CONNECTION ANGLE STAIR PANS SUPPORT ANGLE BY OTHERS
