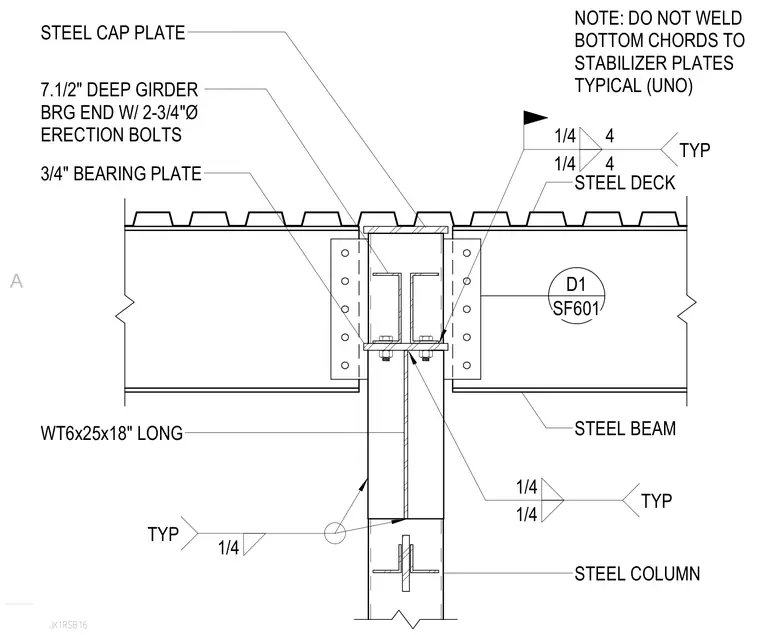

This structural steel connection features a seven-and-a-half-inch deep girder bearing end supported on a three-quarter-inch bearing plate over a steel cap plate. A WT6x25 section eighteen inches long sits atop the steel column. Steel beams frame into the assembly with two three-quarter-inch diameter erection bolts. Fillet welds of one-quarter-inch size are applied typically as noted. Bottom chords remain unwelded to stabilizer plates unless otherwise noted.
JK1RSB16 STEEL CAP PLATE 3/4" BEARING PLATE STEEL COLUMN WT6x25x18" LONG STEEL BEAM STEEL DECK 7.1/2" DEEP GIRDER BRG END W/ 2-3/4"Ø ERECTION BOLTS 1/4 4 1/4 4 TYP 1/4 TYP 1/4 1/4 TYP NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) SF601 D1 A
