Structural · S-NC777

Deck Perpendicular

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Stairs Floors / Slabs Decks Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Shear Tab / Single Plate Welded Connection Bolted Connection Rebar Splice / Development Deck Attachment

About this detail

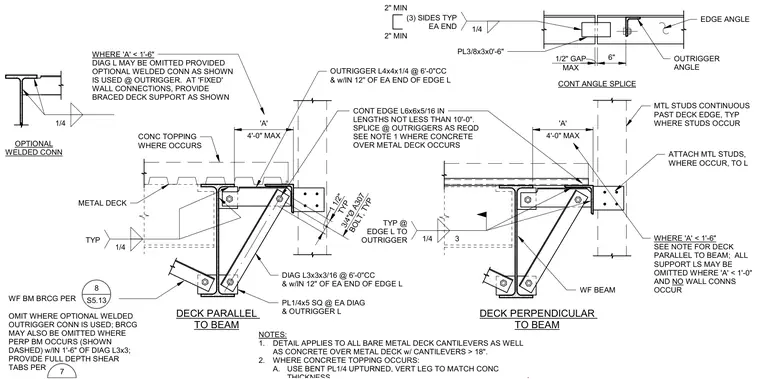

Metal deck edge support conditions function for both parallel and perpendicular deck orientations relative to the supporting wide-flange steel beam. A continuous edge angle spanning at least ten feet receives outrigger angles spaced on six-foot centers, stabilized by diagonal angle braces connected via square plates and three-quarter-inch diameter A307 bolts. Optional welded connections join the outriggers to the beam flange where dimensional limits apply. Concrete topping and continuous metal studs occur at the perimeter when specified by project conditions.
