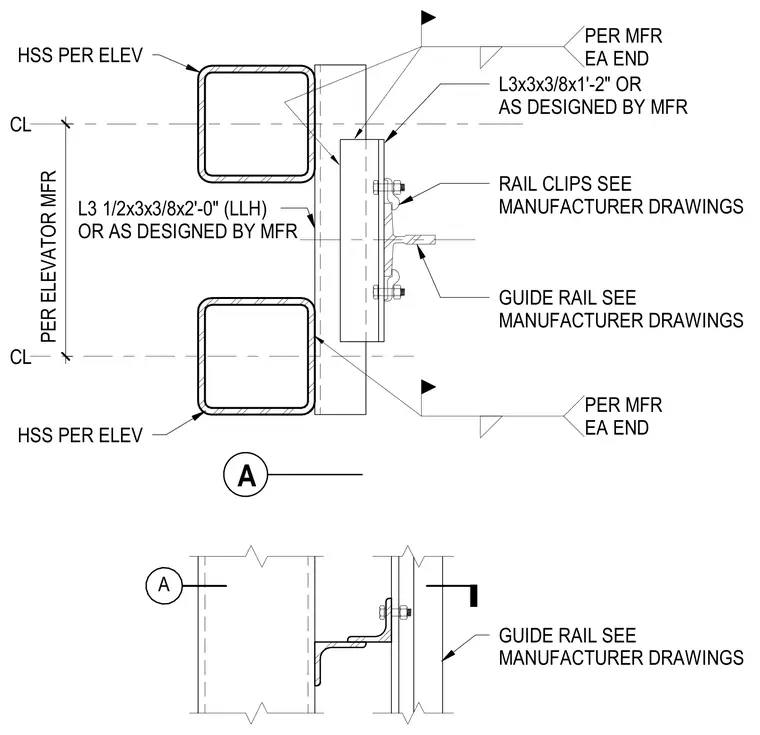

An elevator guide rail connects to a double hollow structural section support assembly using steel angles and rail clips. Two hollow structural section members span vertically, each with a centered dimension per the elevator manufacturer. An angle measuring 3-and-half by 3 by 3-eighths inches by 2 feet long, or as designed by the manufacturer, attaches across the support members. An additional angle measuring 3 by 3 by 3-eighths inches by 1 foot 2 inches long connects with welds at each end per the manufacturer specifications. Rail clips secure the elevator guide rail to the assembly.
A PER MFR EA END PER MFR EA END L3x3x3/8x1'-2" OR AS DESIGNED BY MFR RAIL CLIPS SEE MANUFACTURER DRAWINGS GUIDE RAIL SEE MANUFACTURER DRAWINGS A GUIDE RAIL SEE MANUFACTURER DRAWINGS L3 1/2x3x3/8x2'-0" (LLH) OR AS DESIGNED BY MFR PER ELEVATOR MFR HSS PER ELEV HSS PER ELEV CL CL
