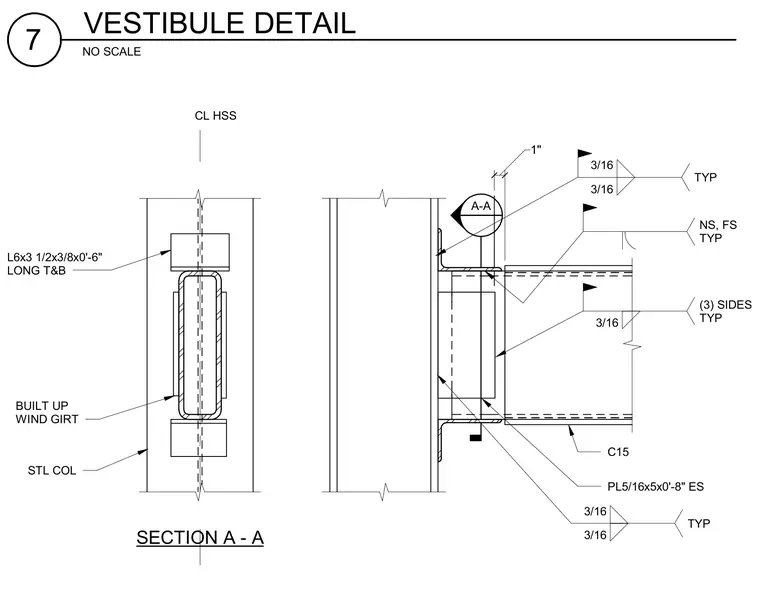

A built-up wind girt channel section connects to a structural steel column using top and bottom angles and a plate. The channel C15 member is secured to the column with an L6x3-1/2x3/8 by zero-foot-six-inch long angle at the top and bottom, and a 5/16 by 5 by zero-foot-eight-inch plate each side. Fillet welds of three-sixteenths inch size are specified typically on three sides, with near-side and far-side welding designations applied.
A-A A-A 3/16 3/16 TYP BUILT UP WIND GIRT CL HSS SECTION A - A STL COL C15 3/16 3/16 TYP L6x3 1/2x3/8x0'-6" LONG T&B 1" PL5/16x5x0'-8" ES 3/16 (3) SIDES TYP NS, FS TYP NO SCALE 7 VESTIBULE DETAIL
