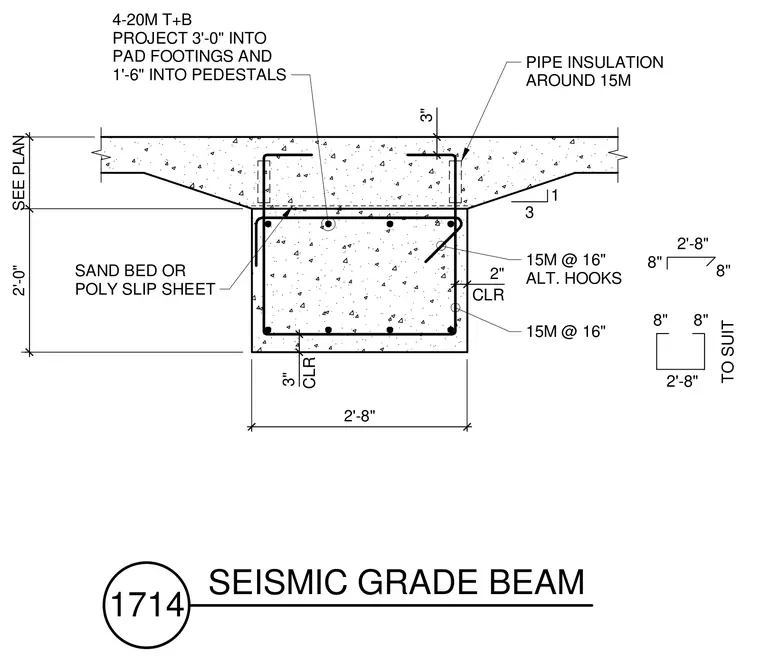

A reinforced concrete seismic grade beam features four twenty-M bars top and bottom, projecting three feet into pad footings and one foot six inches into pedestals. Transverse reinforcement consists of fifteen-M bars spaced at sixteen inches on center with alternating hooks. Pipe insulation wraps around the top fifteen-M reinforcing bar. The assembly rests on a sand bed or poly slip sheet sized per plan, maintaining three-inch clearances at the bottom and two-inch clearances at the sides.
SEE PLAN 2'-0" 2'-8" 4-20M T+B PROJECT 3'-0" INTO PAD FOOTINGS AND 1'-6" INTO PEDESTALS 3" 15M @ 16" ALT. HOOKS 8" 8" 2'-8" 15M @ 16" 8" 8" 2'-8" TO SUIT SAND BED OR POLY SLIP SHEET 3 1 PIPE INSULATION AROUND 15M 3" 2" CLR CLR 1714 SEISMIC GRADE BEAM
