New openings in existing concrete or masonry require core drilling six-inch diameter holes in each corner prior to sawcutting to prevent overcutting and reduce stress concentrations. Corners are chipped out as required to achieve a clean square opening. Nondestructive testing must locate existing reinforcing bars prior to cutting, and openings are positioned to avoid contact with existing reinforcement. All opening locations must be reviewed and approved by the structural engineer of record prior to coring.

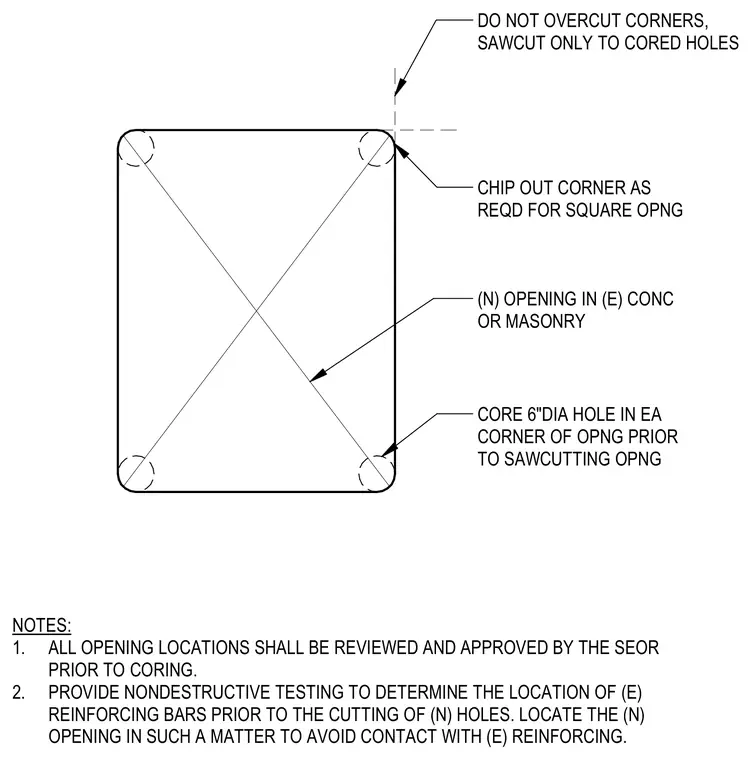

DO NOT OVERCUT CORNERS, SAWCUT ONLY TO CORED HOLES (N) OPENING IN (E) CONC OR MASONRY CORE 6"DIA HOLE IN EA CORNER OF OPNG PRIOR TO SAWCUTTING OPNG CHIP OUT CORNER AS REQD FOR SQUARE OPNG NOTES: 1. ALL OPENING LOCATIONS SHALL BE REVIEWED AND APPROVED BY THE SEOR PRIOR TO CORING. 2. PROVIDE NONDESTRUCTIVE TESTING TO DETERMINE THE LOCATION OF (E) REINFORCING BARS PRIOR TO THE CUTTING OF (N) HOLES. LOCATE THE (N) OPENING IN SUCH A MATTER TO AVOID CONTACT WITH (E) REINFORCING.
