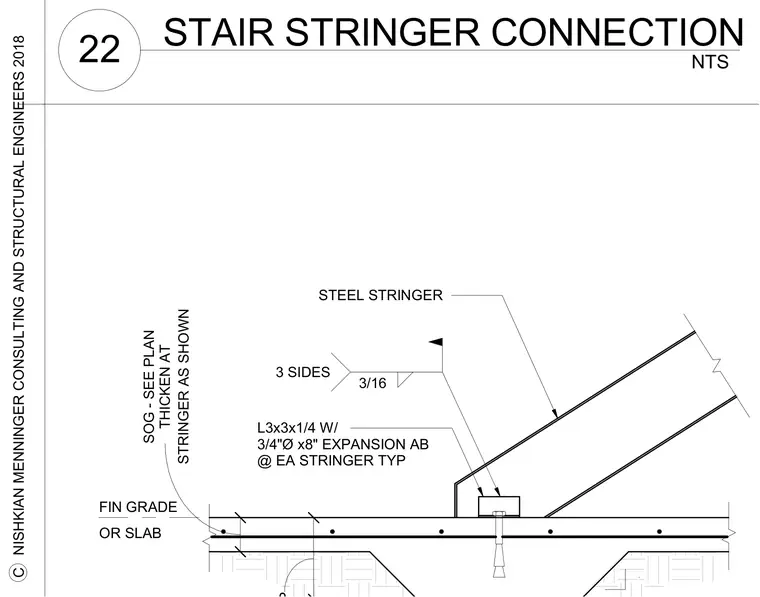

A steel stringer bears onto a slab on grade or finished grade assembly with an L3x3x1/4 angle bracket. The angle connects to the slab using three-quarter-inch diameter by eight-inch expansion anchors at each stringer, typical. A three-sixteenth-inch fillet weld on three sides secures the stringer to the angle as shown. The slab on grade thickens at the connection per the structural plan.
OR SLAB FIN GRADE STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT C NISHKIAN MENNINGER CONSULTING AND STRUCTURAL ENGINEERS 2018 NTS 22 STAIR STRINGER CONNECTION
