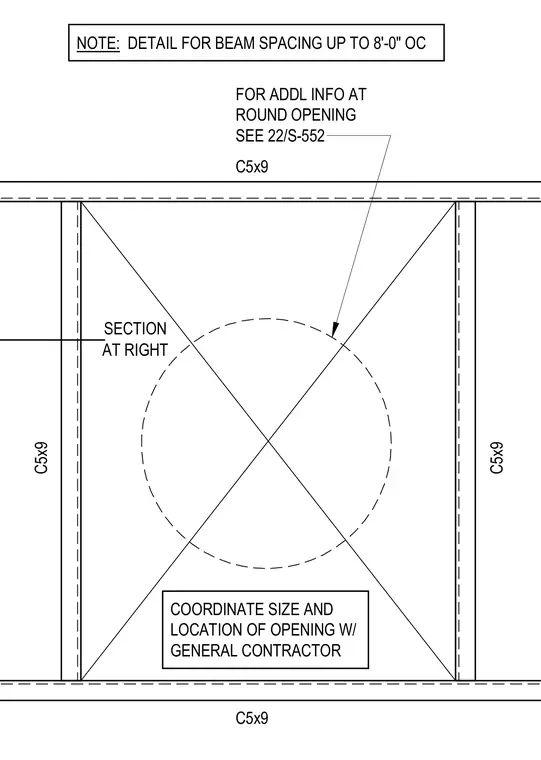

A welded channel frame detail for structural openings accommodates beam spacing up to eight feet on center. C5x9 structural steel channels form the perimeter of the opening. Diagonal dashed lines indicate a planned round opening with coordinating size and location required with the general contractor.
NOTE: DETAIL FOR BEAM SPACING UP TO 8'-0" OC C5x9 C5x9 C5x9 C5x9 COORDINATE SIZE AND LOCATION OF OPENING W/ GENERAL CONTRACTOR SECTION AT RIGHT FOR ADDL INFO AT ROUND OPENING SEE 22/S-552
