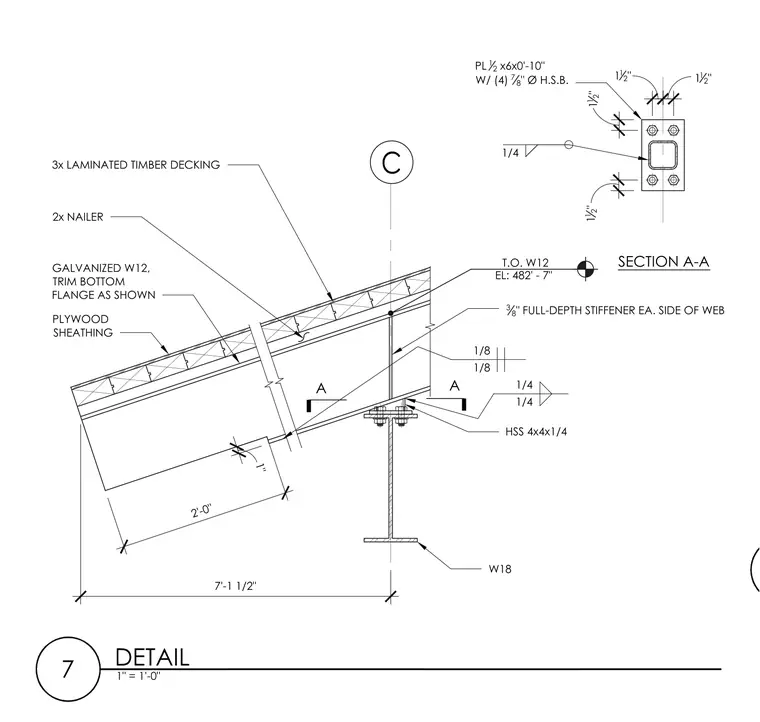

A galvanized W12 beam with a trimmed bottom flange connects to a W18 supporting member via an HSS 4x4x1/4 section and a 1/2-inch plate measuring 6 inches by 0 feet 10 inches secured with four 7/8-inch diameter high-strength bolts. A 3/8-inch full-depth stiffener is welded to each side of the web. The top of the W12 beam sits at elevation 482 feet 7 inches and supports a 2x nailer, three-ply laminated timber decking, and plywood sheathing.
7 DETAIL 1" = 1'-0" 3x LAMINATED TIMBER DECKING 2x NAILER 2'-0" 1" A A SECTION A-A T.O. W12 EL: 482' - 7" 1 1 2 " 1 1 2 " 1 12 " 1 12 " 1/4 PL 1 2 x6x0'-10" W/ (4) 7 8 " Ø H.S.B. GALVANIZED W12, TRIM BOTTOM FLANGE AS SHOWN W18 HSS 4x4x1/4 1/4 1/4 1/8 1/8 7'-1 1/2" 3 8 " FULL-DEPTH STIFFENER EA. SIDE OF WEB PLYWOOD SHEATHING
