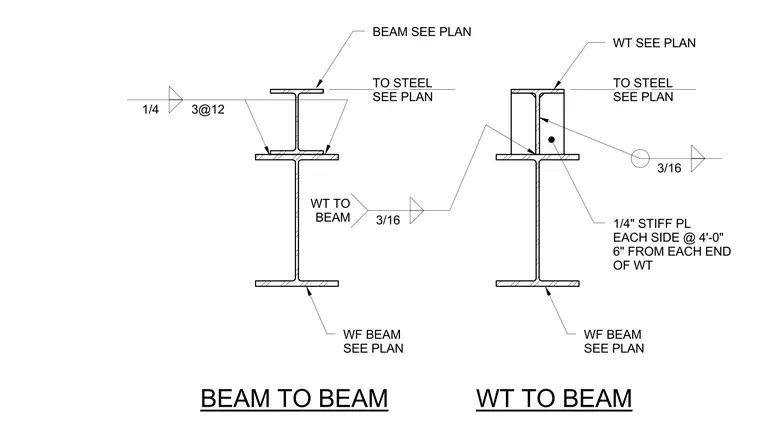

This structural steel detail shows two configurations for connecting filler beams to wide flange support beams using structural tees. The first connection welds a wide flange beam to another wide flange beam using a quarter-inch fillet weld spaced at three inches by twelve inches. The second connection features a structural tee supported by a wide flange beam, reinforced with quarter-inch stiffener plates on each side spaced at four feet and located six inches from each end of the structural tee. Three-sixteenths inch fillet welds secure the structural tee to the supporting beam.
BEAM TO BEAM WT TO BEAM WF BEAM SEE PLAN WF BEAM SEE PLAN BEAM SEE PLAN TO STEEL SEE PLAN 1/4" STIFF PL EACH SIDE @ 4'-0" 6" FROM EACH END OF WT TO STEEL SEE PLAN WT SEE PLAN 3/16 3/16 WT TO BEAM 1/4 3@12
