Structural · S-NB293

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Curtain Walls Floors / Slabs Decks Arches

About this detail

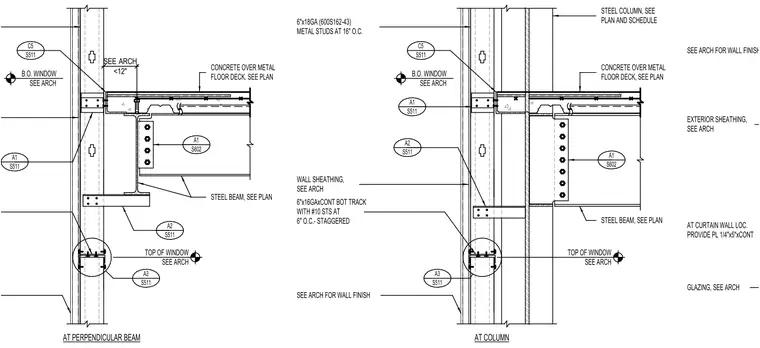

Cold-formed steel framing at the curtain wall consists of 6-inch 18-gauge metal studs spaced at 16 inches on center. A continuous 6-inch 16-gauge bottom track is anchored with number 10 self-tapping screws at 6 inches on center staggered. Exterior sheathing and wall finishes are provided per architectural drawings. At curtain wall locations, a continuous 1/4-inch by 5-inch steel plate is provided. The floor assembly comprises a concrete slab over a metal floor deck supported by steel beams and columns.
