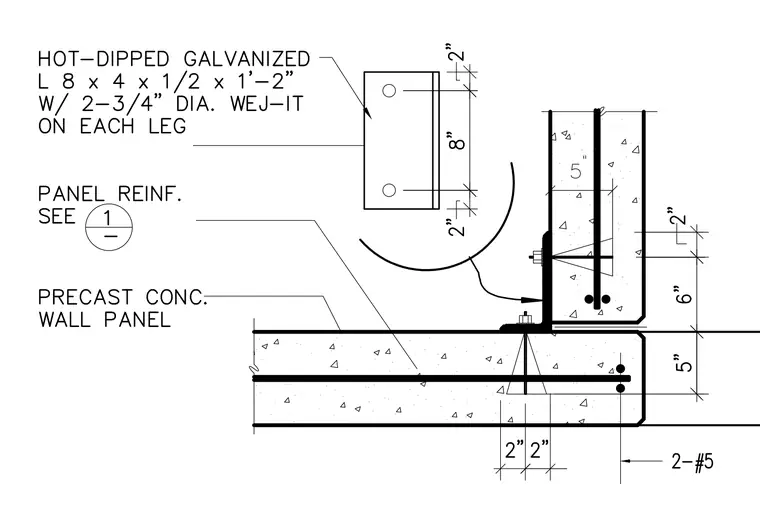

Precast concrete wall panels intersect at a corner and are connected by a hot-dipped galvanized angle measuring 8 inches by 4 inches by 1/2 inch with a length of 1 foot 2 inches. Each leg of the angle is secured with two 3/4-inch diameter Wej-It expansion anchors. Panel reinforcement is detailed per sheet reference 1. The concrete panels feature reinforcing bars and standard edge clearances.
