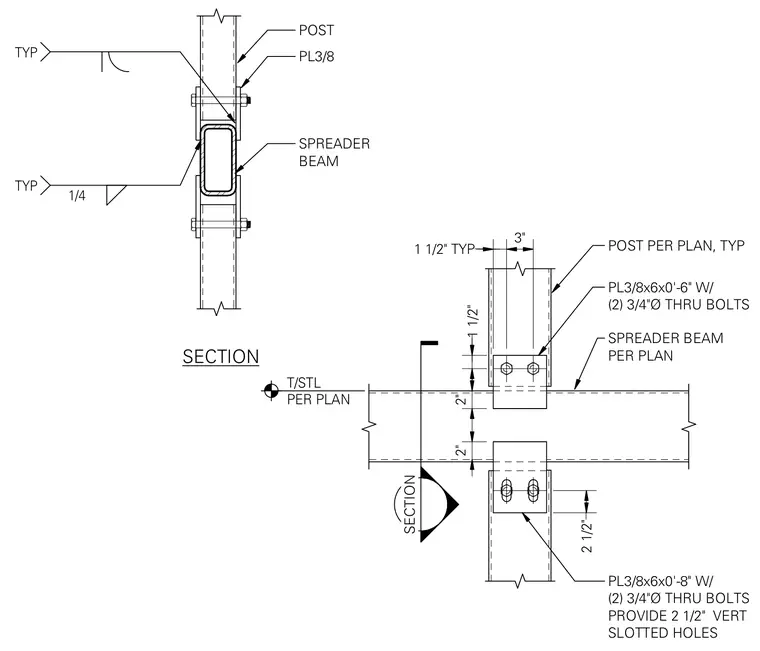

A post and spreader beam connection utilizes three-eighths-inch thick connection plates. The assembly incorporates three-eighths-inch by six-inch by zero-foot-six-inch plates secured with two three-quarter-inch diameter through bolts. Additionally, a three-eighths-inch by six-inch by zero-foot-eight-inch plate is provided with two three-quarter-inch diameter through bolts and two-and-a-half-inch vertical slotted holes to accommodate movement. Fillet welds of one-quarter-inch size are indicated at typical locations. The connection ties the structural post per plan to the spreader beam per plan at the specified top of steel elevation.
SECTION POST PER PLAN, TYP SPREADER BEAM PER PLAN SECTION PL3/8x6x0'-6" W/ (2) 3/4"Ø THRU BOLTS 1 1/2" TYP 3" 2" 1 1/2" POST PL3/8 SPREADER BEAM TYP 1/4 TYP 2 1/2" PL3/8x6x0'-8" W/ (2) 3/4"Ø THRU BOLTS PROVIDE 2 1/2" VERT SLOTTED HOLES 2" T/STL PER PLAN
