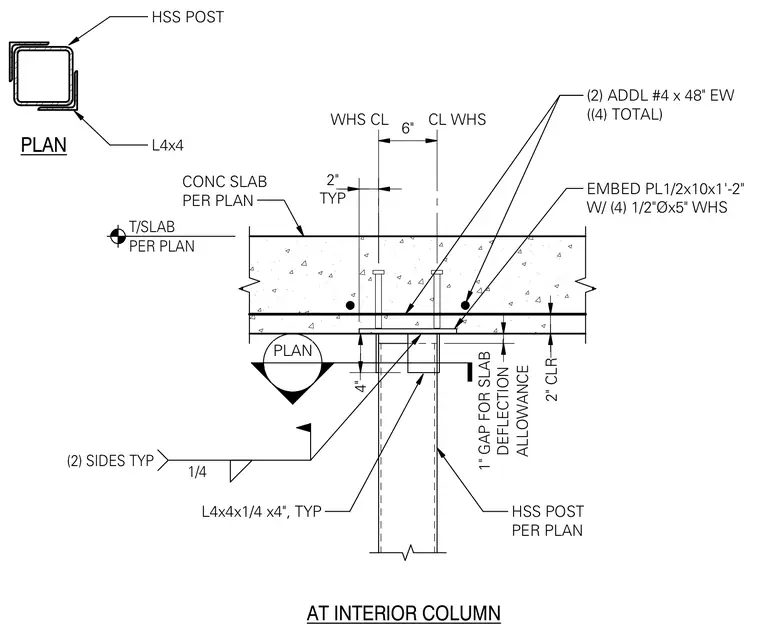

An HSS post connects to a concrete slab using a 1/2-inch by 10-inch by 1-foot-2-inch embed plate equipped with four 1/2-inch diameter by 5-inch welded headed studs. The post assembly features typical L4x4x1/4 angles welded with a quarter-inch fillet weld on two sides, maintaining a 1-inch gap for slab deflection. The concrete slab is reinforced with additional #4 bars at 48 inches each way, totaling four bars around the connection. A 2-inch typical clearance and a 6-inch spacing are maintained relative to the welded headed studs.
T/SLAB PER PLAN 1/4 (2) SIDES TYP PLAN 4" TYP 2" ALLOWANCE 1" GAP FOR SLAB DEFLECTION (2) ADDL #4 x 48" EW ((4) TOTAL) EMBED PL1/2x10x1'-2" W/ (4) 1/2"Øx5" WHS L4x4x1/4 x4", TYP HSS POST PER PLAN HSS POST L4x4 PLAN AT INTERIOR COLUMN 2" CLR 6" CONC SLAB PER PLAN CL WHS WHS CL
