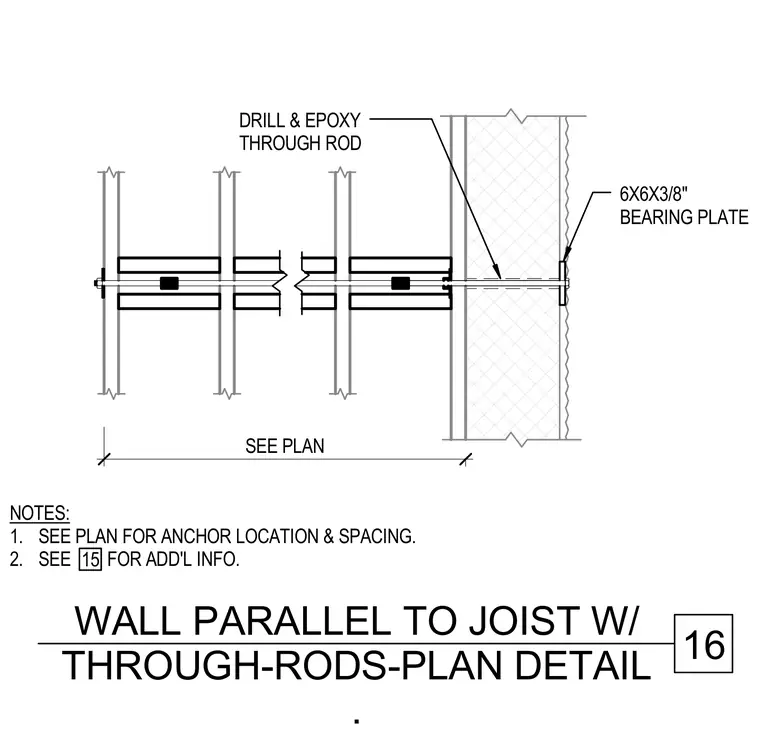

A wall parallel to an open-web joist assembly ties together using drilled and epoxy-set through-rods. A six-by-six-by-three-eighths-inch steel bearing plate distributes the load against the wall assembly, with anchor location and spacing sized per plan. The through-rod extends horizontally through the parallel joist framing members as specified in the structural notes.
NOTES: 1. SEE PLAN FOR ANCHOR LOCATION & SPACING. 2. SEE FOR ADD'L INFO. 15 DRILL & EPOXY THROUGH ROD 6X6X3/8" BEARING PLATE SEE PLAN 16 WALL PARALLEL TO JOIST W/ THROUGH-RODS-PLAN DETAIL .
