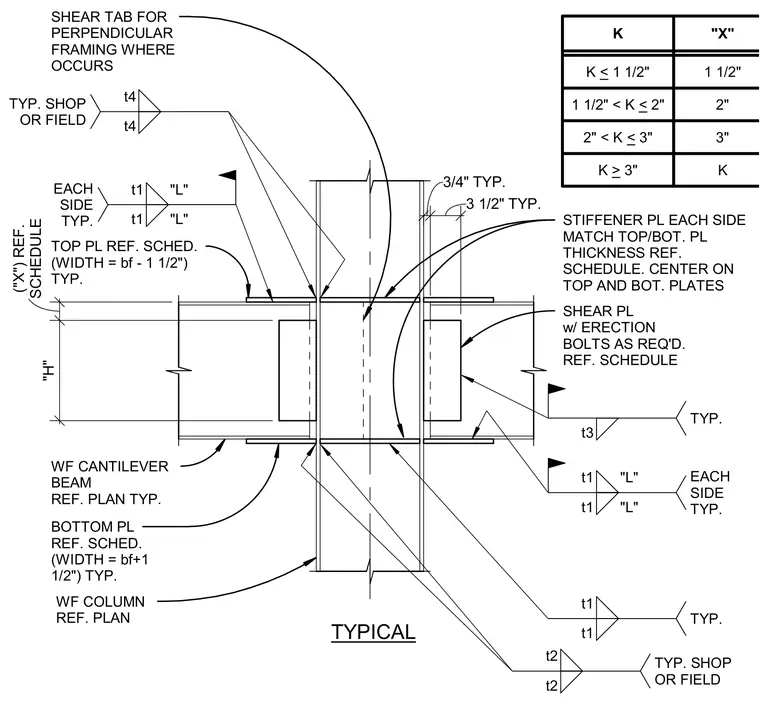

A wide flange cantilever beam frames into a wide flange column with top and bottom plates sized per schedule. Stiffener plates are welded to each side of the column web, matching the thickness of the top and bottom plates and centered on them. A shear plate with erection bolts connects the web of the beam to the column, complemented by fillet welds specified by length and size on each side. Additional shear tabs are provided for perpendicular framing where required. A dimension table relates the column distance K to dimension X for plate layout.
TYPICAL K < 1 1/2" 1 1/2" K "X" 1 1/2" < K < 2" 2" 2" < K < 3" 3" K > 3" K WF CANTILEVER BEAM REF. PLAN TYP. BOTTOM PL REF. SCHED. (WIDTH = bf+1 1/2") TYP. t1 "L" t1 "L" EACH SIDE TYP. SHEAR PL w/ ERECTION BOLTS AS REQ'D. REF. SCHEDULE t3 TYP. t1 t1 TYP. t2 t2 TYP. SHOP OR FIELD t4 t4 TYP. SHOP OR FIELD SHEAR TAB FOR PERPENDICULAR FRAMING WHERE OCCURS t1 "L" t1 "L" EACH SIDE TYP. TOP PL REF. SCHED. (WIDTH = bf - 1 1/2") TYP. "H" SCHEDULE ("X") REF. WF COLUMN REF. PLAN STIFFENER PL EACH SIDE MATCH TOP/BOT. PL THICKNESS REF. SCHEDULE. CENTER ON TOP AND BOT. PLATES 3/4" TYP. 3 1/2" TYP.
