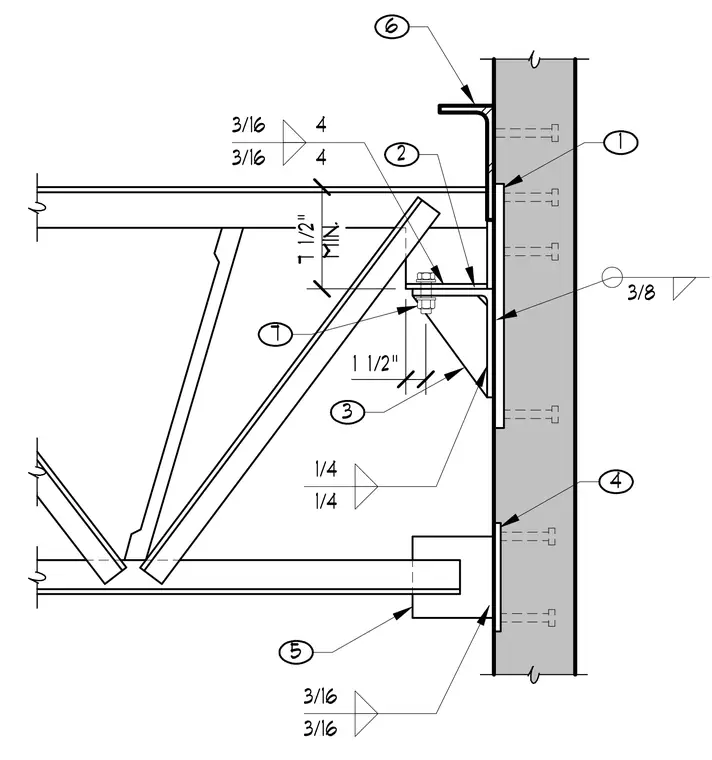

An open web steel joist bears onto an angle seat bracket welded to a steel plate embedded in a concrete wall. The top chord of the joist extends under an upper angle bracket with a minimum one-and-a-half-inch clearance. A bolted connection secures the joist web to the seat bracket. Stiffener plates and fillet welds reinforce the support brackets against the wall plate.
1 4 5 3 7 2 6 7 1/2" MIN. 1 1/2" 3/16 3/16 1/4 1/4 3/16 4 3/16 4 3/8
