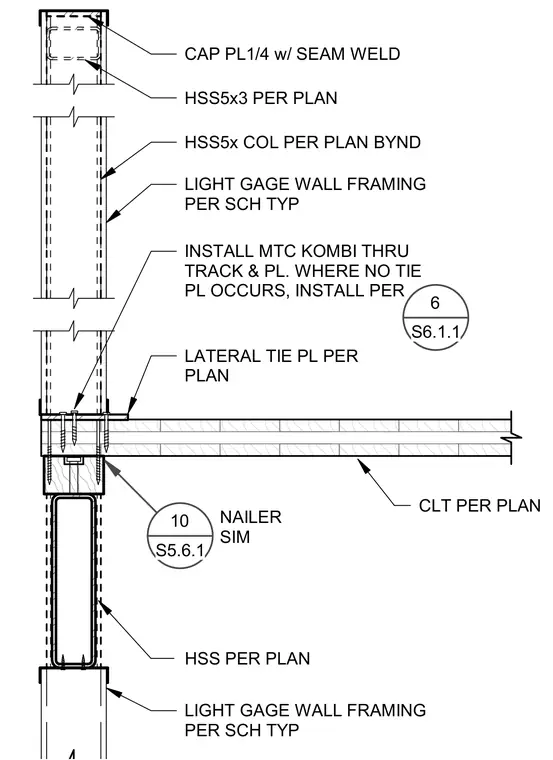

A hollow structural section column extends upward to form the parapet framing, capped with a quarter-inch plate secured by a seam weld. Cross-laminated timber roof panels bear on the supporting members below, tied with an MTC Kombi through track and plate system or a lateral tie plate per plan. Light gauge metal wall framing is installed continuously behind the structural elements on both levels. A wood nailer is detailed similarly below the CLT deck where indicated.
CLT PER PLAN 6 S6.1.1 10 S5.6.1 HSS PER PLAN NAILER SIM HSS5x COL PER PLAN BYND CAP PL1/4 w/ SEAM WELD LIGHT GAGE WALL FRAMING PER SCH TYP HSS5x3 PER PLAN LIGHT GAGE WALL FRAMING PER SCH TYP INSTALL MTC KOMBI THRU TRACK & PL. WHERE NO TIE PL OCCURS, INSTALL PER LATERAL TIE PL PER PLAN
