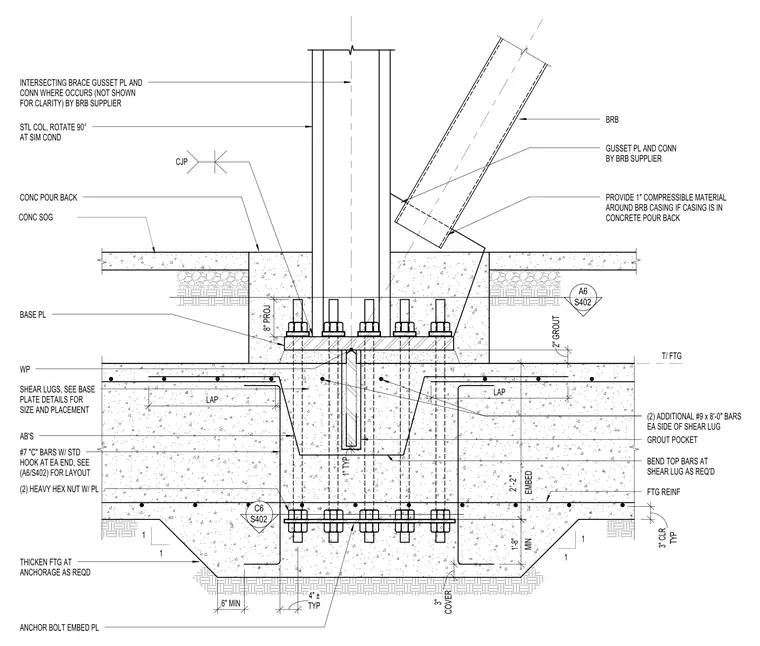

A structural steel column and a buckling-restrained brace connect to a base plate anchored over a reinforced concrete footing. The assembly features anchor bolts secured with heavy hex nuts and bearing on an embedded anchor plate within a grout pocket. A shear lug welded beneath the base plate transfers lateral loads into the footing, supplemented by additional reinforcing bars and "C" shaped hooked bars. A one-inch compressible material wraps around the buckling-restrained brace casing where it is cast into the concrete pour-back.
AB'S (2) HEAVY HEX NUT W/ PL STL COL, ROTATE 90° AT SIM COND GUSSET PL AND CONN BY BRB SUPPLIER T/ FTG FTG REINF 1 1 8" PROJ 2" GROUT CONC SOG BASE PL EMBED 2'-2" COVER 3" 1 1 THICKEN FTG AT ANCHORAGE AS REQD CJP BRB CONC POUR BACK SHEAR LUGS, SEE BASE PLATE DETAILS FOR SIZE AND PLACEMENT ANCHOR BOLT EMBED PL GROUT POCKET (2) ADDITIONAL #9 x 8'-0" BARS EA SIDE OF SHEAR LUG WP BEND TOP BARS AT SHEAR LUG AS REQ'D TYP 4" ± 6" MIN #7 "C" BARS W/ STD HOOK AT EA END, SEE (A6/S402) FOR LAYOUT MIN 1'-8" PROVIDE 1" COMPRESSIBLE MATERIAL AROUND BRB CASING IF CASING IS IN CONCRETE POUR BACK TYP 3" CLR 1" TYP INTERSECTING BRACE GUSSET PL AND CONN WHERE OCCURS (NOT SHOWN FOR CLARITY) BY BRB SUPPLIER A6 S402 C6 S402 LAP LAP
