A reinforced concrete wall extends upward from a continuous concrete footing, reinforced with vertical and horizontal bars matching the structural schedule. Dowels extend from the footing up into the wall to provide continuous vertical reinforcement development. A concrete slab on grade abuts the wall on one or both sides, detailed per plan. The footing rests on prepared subgrade with reinforcing bars placed across its width.

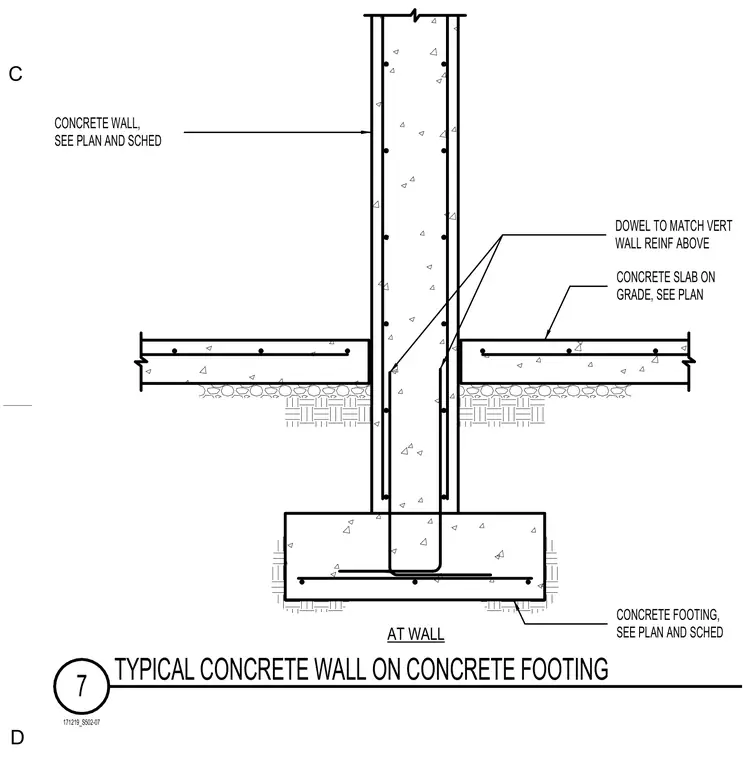

171219_S502-07 7 TYPICAL CONCRETE WALL ON CONCRETE FOOTING CONCRETE SLAB ON GRADE, SEE PLAN DOWEL TO MATCH VERT WALL REINF ABOVE CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE WALL, SEE PLAN AND SCHED AT WALL D C
